Mantic 9000 Series Twin Segmented Disc Clutch Kit With Uprated Pressure Plate, 1997-2004

Mantic 9000 Series Twin Segmented Disc Clutch Kit With Uprated Pressure Plate, 1997-2004
Mantic 9000 Series Twin Segmented Disc Clutch Kit With Uprated Pressure Plate, 1997-2004Mantic 9000 Series Twin Segmented Disc Clutch Kit With Uprated Pressure Plate, 1997-2004Mantic 9000 Series Twin Segmented Disc Clutch Kit With Uprated Pressure Plate, 1997-2004Mantic 9000 Series Twin Segmented Disc Clutch Kit With Uprated Pressure Plate, 1997-2004Mantic 9000 Series Twin Segmented Disc Clutch Kit With Uprated Pressure Plate, 1997-2004Mantic 9000 Series Twin Segmented Disc Clutch Kit With Uprated Pressure Plate, 1997-2004Mantic 9000 Series Twin Segmented Disc Clutch Kit With Uprated Pressure Plate, 1997-2004
$4,651.99 kt
NEWARRIVING SOONEstimated Ship Date 04/10/2024 (If Ordered Today)
Model: 3226818
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

  • Replacement Upgrade Clutch Kit
  • Handles Up To 1,010 Ft. Lbs. Of Torque With Low Pedal Effort
  • Comes With Every Part Needed In Typical Clutch Jobs
  • Dynamometer Tested, Field Tested On The Street And Track
  • ISO9001 Quality Certified & SFI Approved

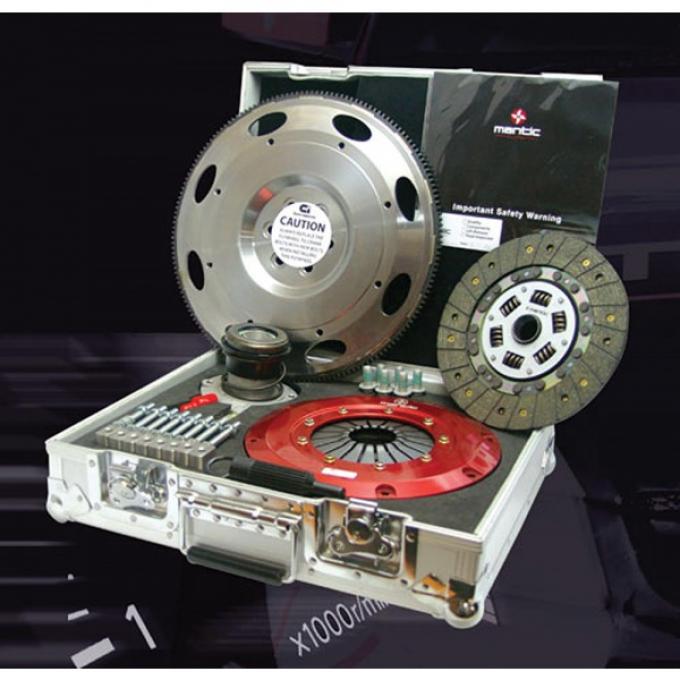

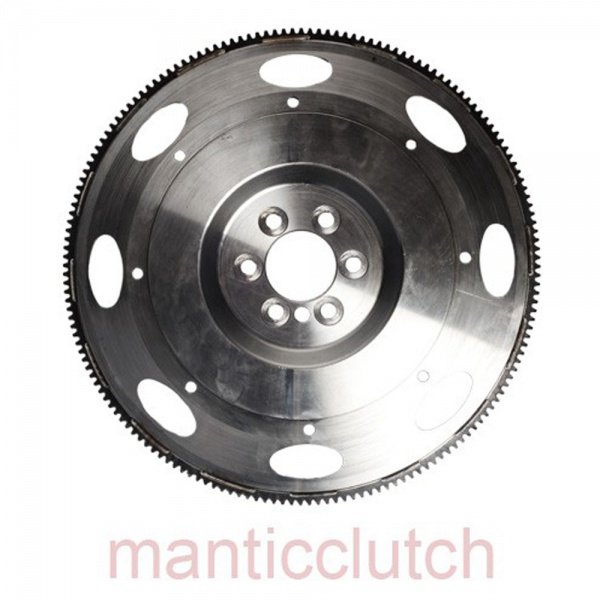

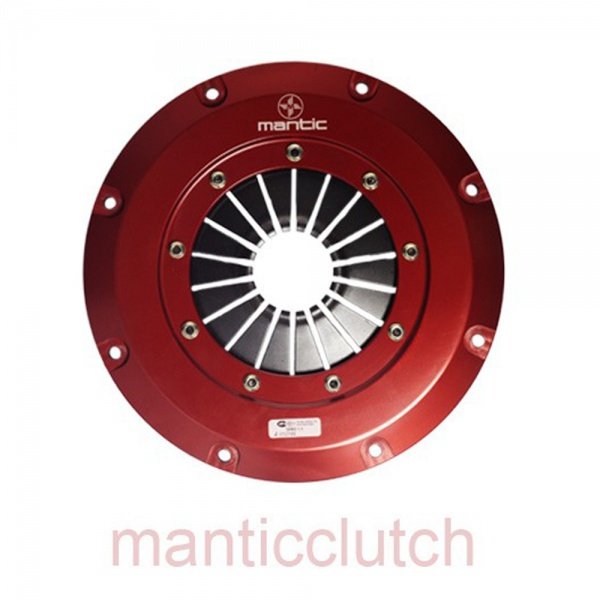

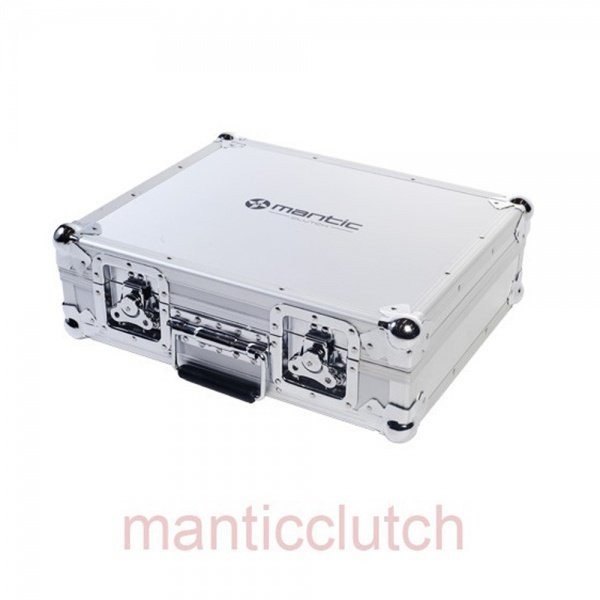

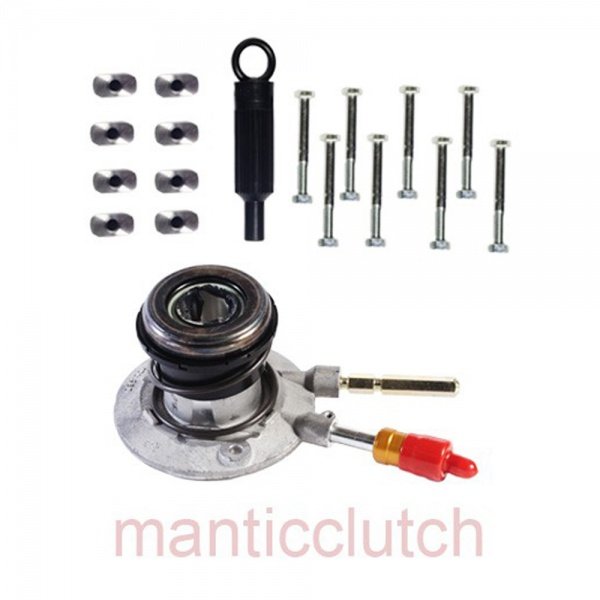

  • Includes Updated Diaphragm Pressure Plate, Twin Segmented Cerametalic Sprung Hub Clutch Discs, Lightened Steel Flywheel, Clutch Slave Cylinder with Release Bearing, Bolts and Alignment Tool, And Attache Case
  • Fits Corvettes With LS1 Engines
  • Made & Engineered In Australia
  • Limited 90 Day Or 6,000 Mile Manufacturer Warranty

Is it time to replace that old clutch? Get this complete kit to make installation a breeze, saving time and effort. This kit includes sprung centre cushioned button type discs that offer a level of performance above organic discs, while requiring little compromise in driving style and vehicle usage. Mantic 9000 series clutches are twin disc, 9” (225mm) diameter modular clutches that are designed for high performance cars. Mantic 9000 series are low MOI (Moment of Inertia) clutches that offer a level of performance not only superior to a single disc unit, but also allow you to select options that best suit you. All 9000 series clutches are made with premium quality materials designed to perform and last the distance. These kits offer up to 1010ft lbs of torque drive capability with low pedal effort. The key to the 9000 series is the street drivability of the Sprung Street Cerametallic discs. These suit high performance engines and enthusiastic driving styles, while allowing excellent drivability when needed.

What Are The Different Types Of Mantic Clutches Available For My Corvette:

Sprung Street Organic:
This is a sprung centre cushioned organic disc. It is the entry-level disc that offers better than OE engagement and pedal feel whilst still providing a higher torque capacity

Sprung Street Organic:
This is a sprung centre cushioned organic disc. It is the entry-level disc that offers better than OE engagement and pedal feel whilst still providing a higher torque capacity.

Sprung Street Cerametallic:

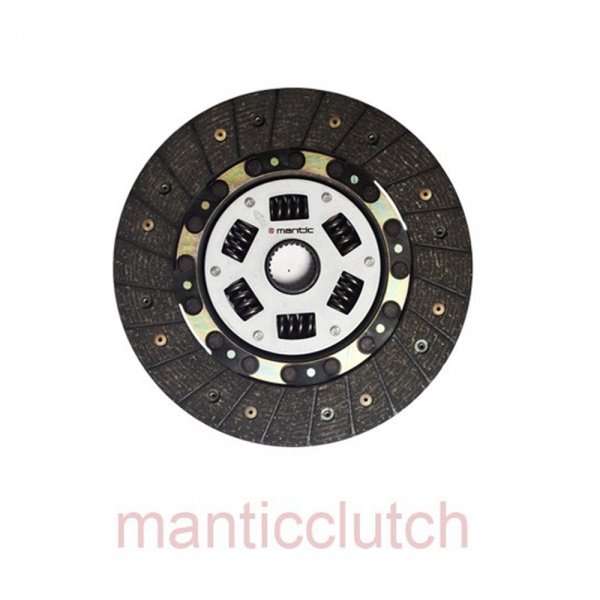

This is a sprung centre cushioned button type disc that offers a level of performance above organic discs, while offering little compromise in driving style and vehicle usage.

Rigid Street Cerametallic:
This is a rigid, non sprung centre, but with a cushioned button type disc that allows for a harder driving style with the best compromise for pure performance and drivability.

Rigid Track Paddle:
The solid centre, non cushioned metallic disc and is the highest level of the Mantic 9000 range.
Designed for pure performance, this clutch offers few compromises. Engagement is sudden, limiting the chance of slippage. It is recommended for track use only.

What Are The Advantages Of A Smaller Diameter, Multiple Disc Clutch Over A Larger Diameter Single Disc Unit?

  1. Increase the amount of torque able to be transmitted.
  2. Decrease the pedal effort to operate the clutch.
  3. Decrease the weight of the clutch
  4. Decrease the M.O.I. (Moment of Inertia) of the clutch.

The amount of torque that a clutch transmits is critical to the ultimate performance of a vehicle. Multi disc clutches increase the available torque capacity by 2 for twin disc and 3 for triple disc.

Torque Capacity is affected by 4 factors:

  1. Decreasing the diameter reduces torque capacity.
  2. A smaller diameter clutch has a smaller diaphragm, which usually means a lower clamping force
  3. Adding a second clutch disc doubles the torque capacity.
  4. Increasing the coefficient of friction of the clutch discs increases the torque capacity.
  5. If the multi disc clutch is correctly designed and engineered, the losses from the smaller diameter and lower clamp force are much less than the gain in coefficient of friction and extra disc(s), giving the torque increase.

Examples:

Diameter Weight No of Discs Torque
9.0in/225mm 33.8lb/15.4kg 2 1010ft lbs/1365Nm
7.25in/185mm 26.6lb/12.1kg 3 984ft lbs/1330Nm
12.0in/300mm 46.0lb/21.0kg 1 781ft lbs/973Nm

Pedal Effort:

Smaller diaphragms used in multi disc clutches will usually require less pedal effort to disengage the clutch. This is in direct contrast to a larger single disc clutch which has a larger diaphragm with heavier pedal effort

Decreased Weight:

The above examples clearly show the weight relationship between multi disc and single disc clutches.

M.O.I. (Moment of Inertia):

Lower weight means less inertia has to be overcome to spin the clutch. This means less engine power is needed to turn the clutch. The net effect is the vehicle is able to accelerate faster. Lower weight also means that the clutch discs will not continue to spin on for as long and allow faster shifting. The net result again is faster acceleration and less time when there is no power being transmitted to the wheels.

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet Corvette 1997 - 2004
