Oracle Lighting In-Line RGB Link 1624-504

Oracle Lighting In-Line RGB Link 1624-504
Oracle Lighting In-Line RGB Link 1624-504Oracle Lighting In-Line RGB Link 1624-504Oracle Lighting In-Line RGB Link 1624-504Oracle Lighting In-Line RGB Link 1624-504
$4.00$4.99 ea
NEWLOW STOCK ALERT!Only 2 Left in Stock
Model: 4847674
This product has universal fitment. Please check description and specifications to ensure that this product will work with your vehicle.
STANDARD
DELIVERY

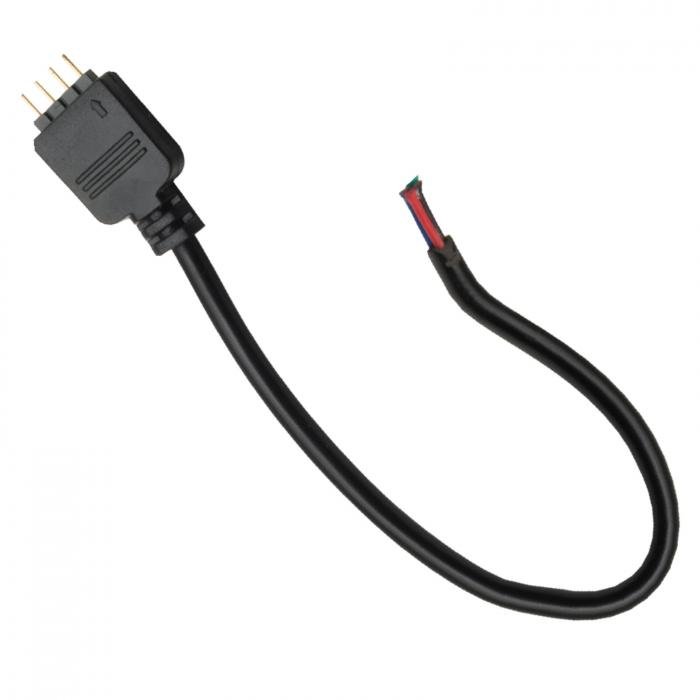

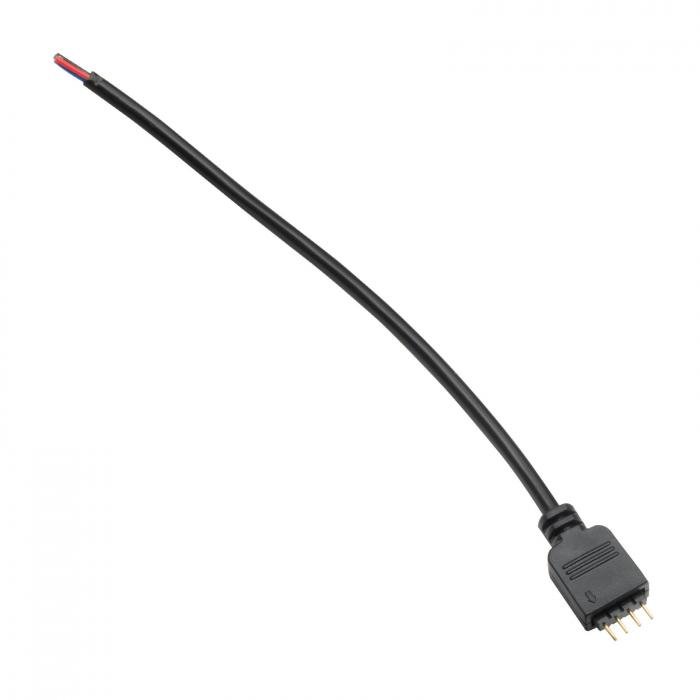

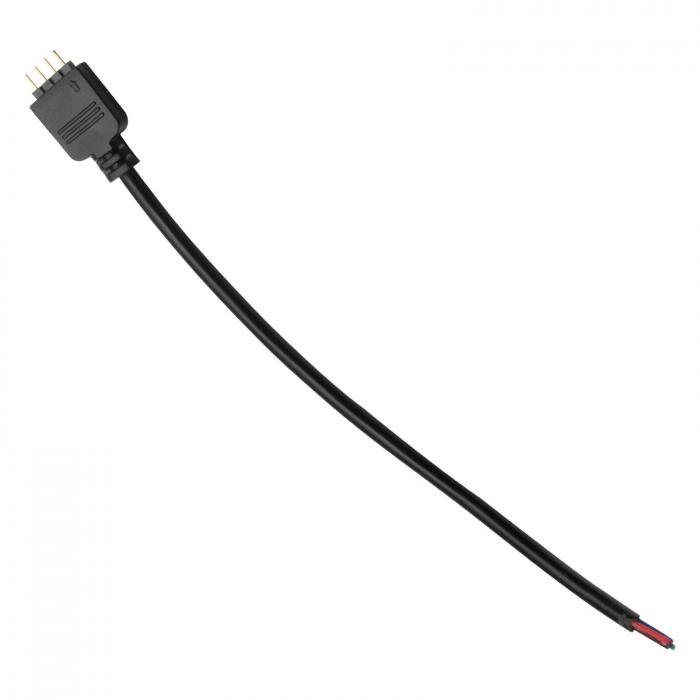

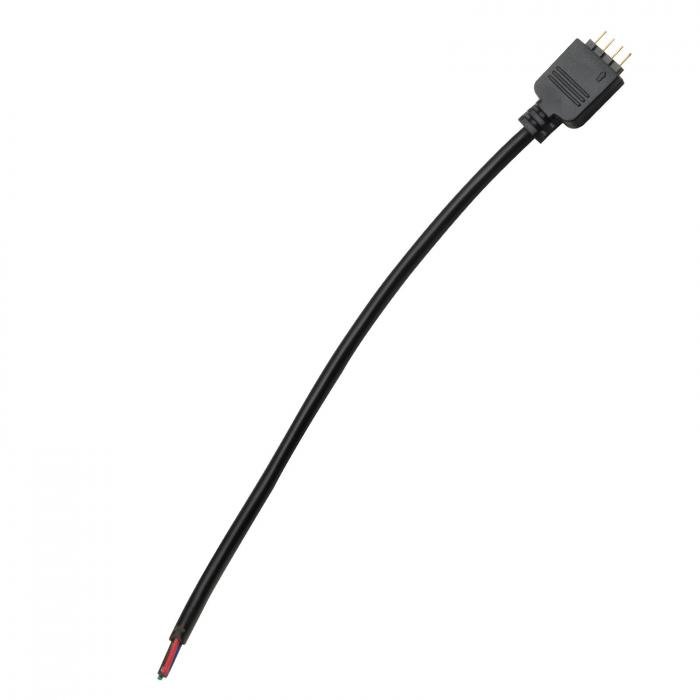

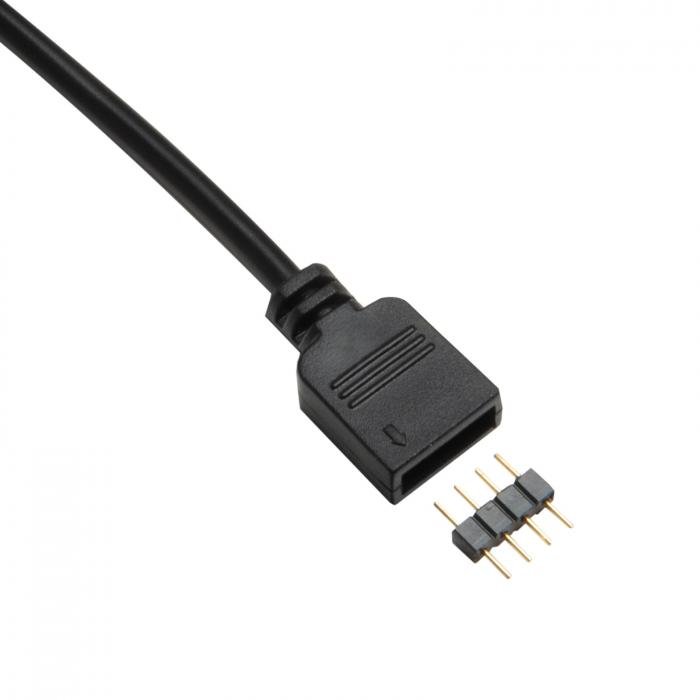

In-line three channel RGB amplifier is used to increase the load capability and extend the signal of any universal RGB controller. This in line amplifier is required if you are exceeding the maximum load capability of any universal RGB controller. 2 x 4-pin RGB pigtail connectors included. With supplied RGB pigtail connectors, bridge 2 segments of LED RGB Strip with the LED amplifier in between. Connect RED and BLACK wires to 12 Volt power source. Product Specifications: - Voltage: 8-16V - Length: 1.6 in - Width: 0.4 in - Height: 0.1 in - Max load current: 12 Amps - Output: 3 channels - Working temperature: -4-140F- Static power consumption: < 1 Watt - Output Power: 144 Watts - RoHS compliant, FCC, CE Certified, cULus Classified - 2 Year Warranty
Features:
  • In-Line RGB Link
  • Universal
  • Increases the load capability and extends the signal of any universal RGB controller.

About Oracle Lighting Technologies

Louisiana-based Oracle Lighting has been designing innovative lighting products and technologies for the automotive/12Volt, powersports, motorcycle, and marine markets since 1999. The company's philosophy is this: in today's world of fly-by-night vendors, we think it is important to partner with businesses that you can trust to be there for you today, tomorrow, and for years to come.

Located just outside New Orleans, Oracle Lighting has received accolades from numerous organizations for its business practices for many years, including most recently being awarded SEMA's Manufacturer of the Year in 2021 for outstanding contribution to the automotive industry. The company was also listed on the Inc500 list of the Fastest Growing Businesses in the USA for eight years consecutively, winning the 2012 Bronze Stevie Award for Consumer Products Company of the Year, and being named The Small Business Administration's Exporter of the Year and a Small Business Champion by the U.S. Senate Small Business and Entrepreneurship Committee. In 2012, Oracle Lighting was named the Jefferson Parish Small Business of the Year by JEDCO. New Orleans CityBusiness Magazine also named Oracle Lighting a Top Private Company in the Greater New Orleans Area in 2012, 2013, 2014, 2015, 2016, and 2017 as well as a top three Fastest Growing Company in 2021.

Specifications:

Dimensions Length: 1.6 in., Width: 0.4 in., Height: 0.1 in.
Outputs 3 channels
Part Type Accessory Power Module Connector
Power Output 12A
Proposition 65 WARNING: Cancer and Reproductive Harm
Voltage 8 16V
Warranty 2 Year
Warranty Time 1 YR
Wattage 144W
