NOS Nitrous Solenoid, Blue 18178NOS

NOS Nitrous Solenoid, Blue 18178NOS
NOS Nitrous Solenoid, Blue 18178NOSNOS Nitrous Solenoid, Blue 18178NOSNOS Nitrous Solenoid, Blue 18178NOSNOS Nitrous Solenoid, Blue 18178NOS
$369.99 ea
NEWARRIVING SOONEstimated Ship Date 06/14/2024 (If Ordered Today)9 Available from HOLLEY PERFORMANCE PRODUCTS as of 05/25/2024
Model: 4013610
STANDARD
DELIVERY

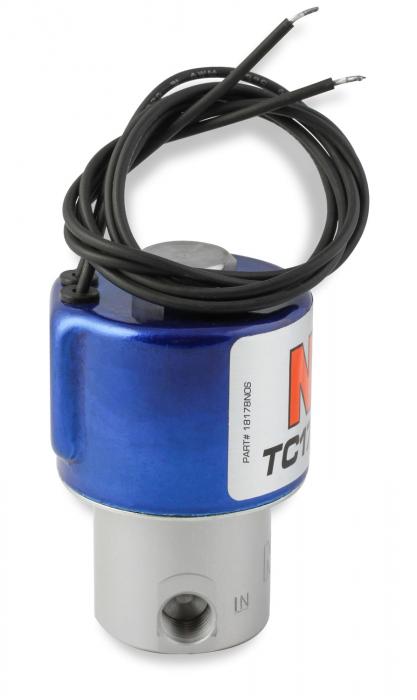

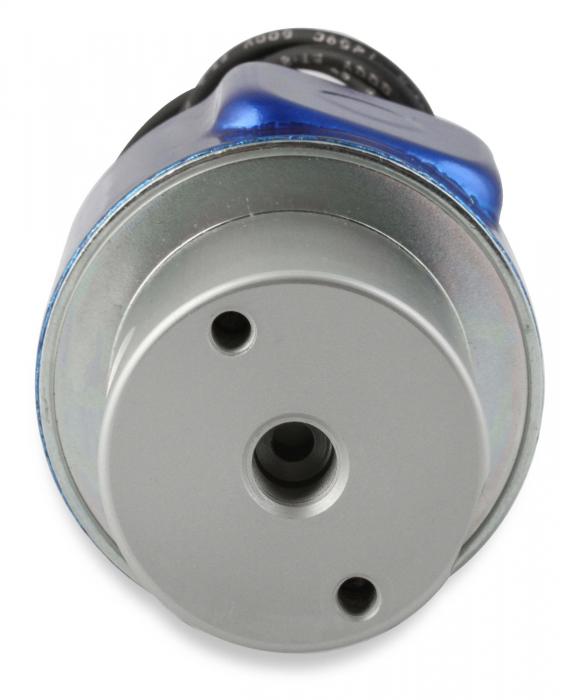

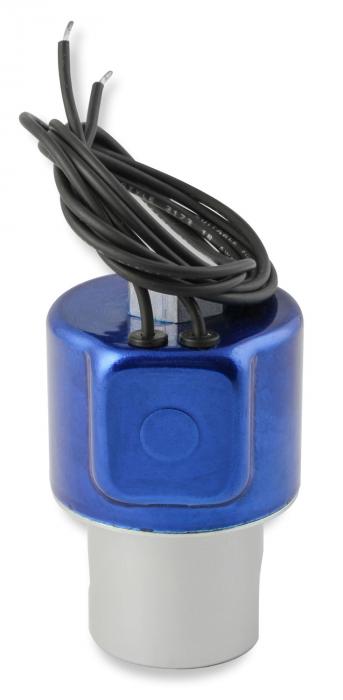

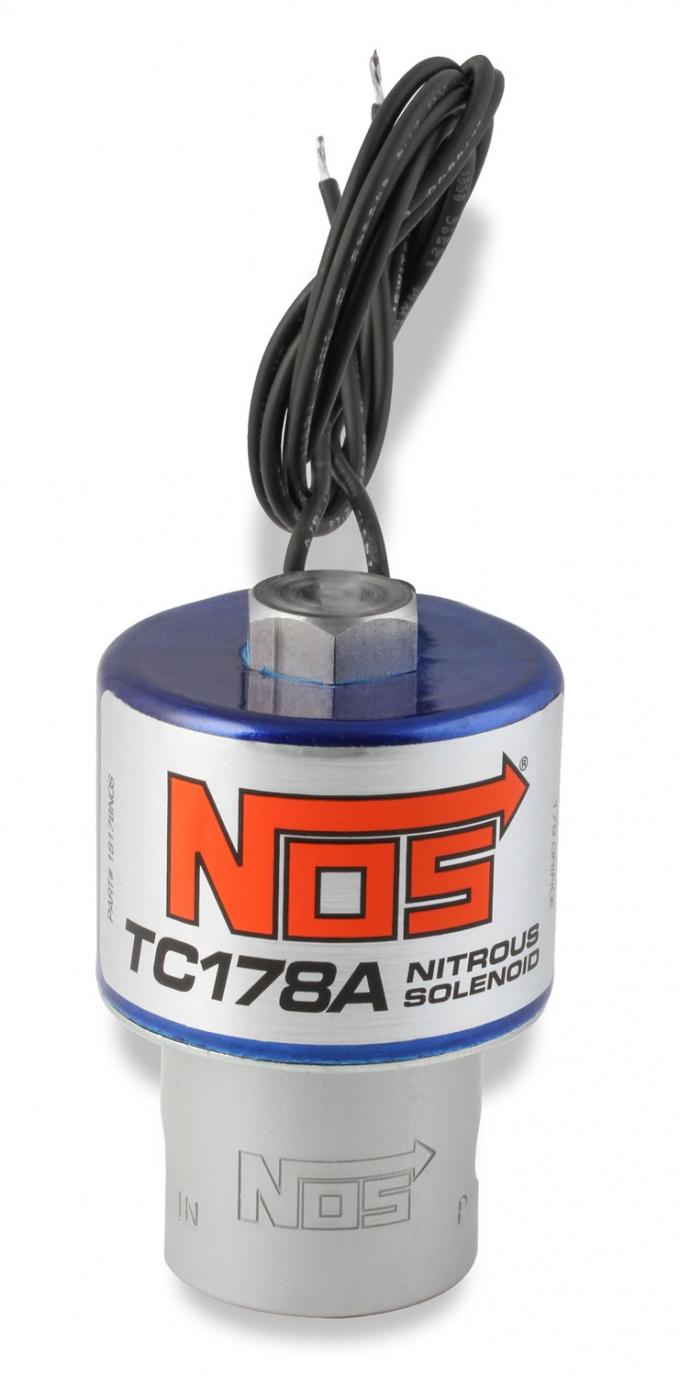

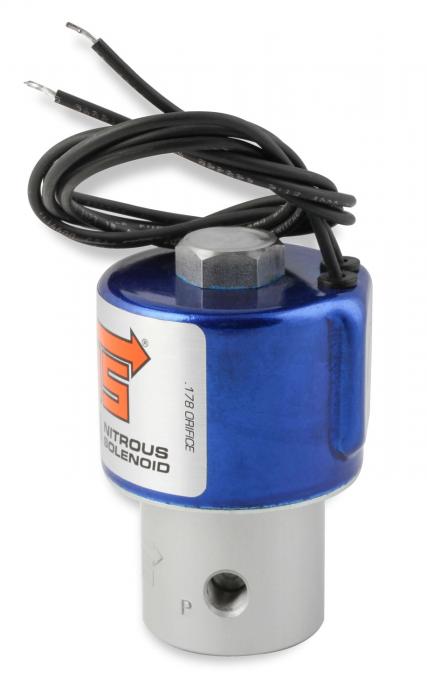

NOS TC178 Nitrous Solenoid was developed for one purpose; deliver the most nitrous volume possible for a single solenoid. With a 0.178" outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid. The TC178 base is also constructed of 6061 Aluminum and then clear anodized. This reduces the weight by 1/4 of a pound over the NOS Super BigShot Trash Can Solenoid, and still retains the mounting location on the base. If maximum power from a single stage of nitrous is what you need, get the new NOS TC17 Current Draw is 20 Amps at 12 volts DC. This Solenoid can be used with a progressive controller
Features:
  • Supports in excess of 900 horsepower
  • Inlet Port Size - 1/4" NPT (Side)
  • Outlet Port Size - 1/8" NPT (Bottom)
  • Purge Port Size - 1/8" NPT (Side)
  • Orifice - 0.178"
  • Plunger - PTFE
  • Light Weight Aluminum - 1.66 lbs.
  • Material - 6061 Aluminum
  • Saves 1/4 lb. over similar steel solenoids
The TC178 offers a 1/8" NPT bottom exit and a 1/8" NPT purge port. The side purge port must be plugged if not used.
Installation Notes:
The TC178 offers a 1/8" NPT bottom exit and a 1/8" NPT purge port. The side purge port must be plugged if not used.

Videos:

Specifications:

Amp Draw 20A, 20A
Bracket(s) Included No
Color Blue
Emission Code 4
Finish Natural
Fittings Included No
Inlet Side
Inlet Attachment Female Threads
Inlet Thread 1/4" NPT
Material 6061-T6 Aluminum
Max Horsepower 900
Orifice 0.178"
Outlet Bottom
Outlet Attachment Female Threads
Outlet Thread 1/8" NPT
Part Type Nitrous Oxide Solenoid
Plunger Material PTFE
Product Line TC178
Product Type Nitrous Solenoid
Purge Port 1/8" NPT
Solenoid Top Cover Color Blue
