NOS Nitrous Solenoid, Black 18178BNOS

NOS Nitrous Solenoid, Black 18178BNOS
NOS Nitrous Solenoid, Black 18178BNOSNOS Nitrous Solenoid, Black 18178BNOSNOS Nitrous Solenoid, Black 18178BNOSNOS Nitrous Solenoid, Black 18178BNOSNOS Nitrous Solenoid, Black 18178BNOSNOS Nitrous Solenoid, Black 18178BNOS
$339.99 ea
NEWARRIVING SOONEstimated Ship Date 07/11/2024 (If Ordered Today)8 Available from HOLLEY PERFORMANCE PRODUCTS as of 06/22/2024
Model: 4013609
STANDARD
DELIVERY

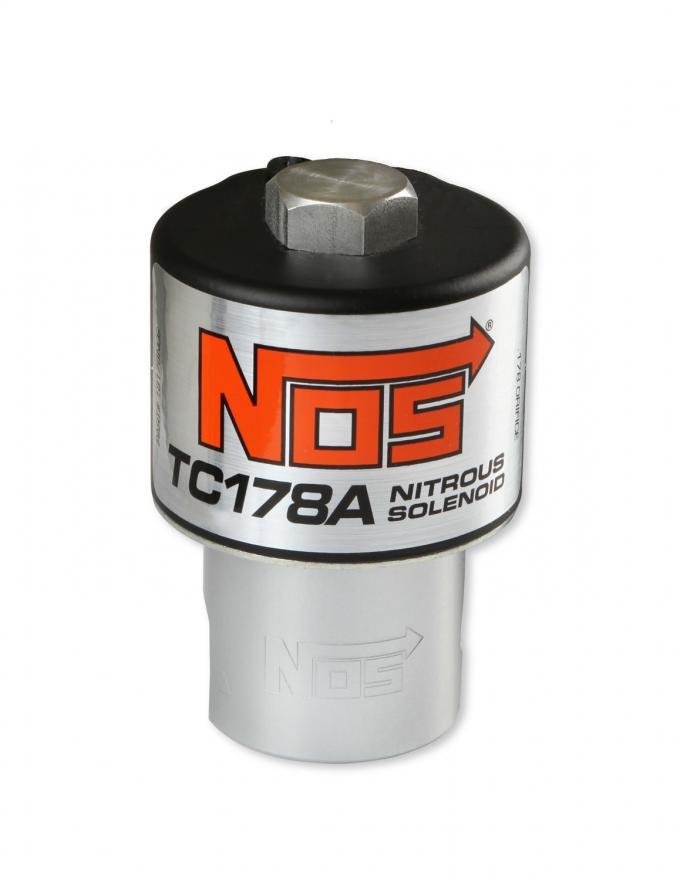

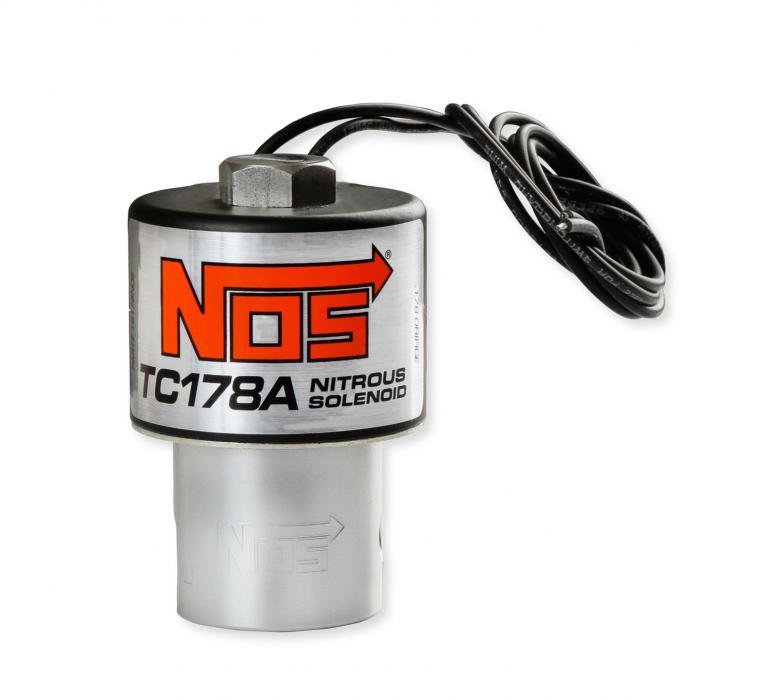

NOS TC178 Nitrous Solenoid was developed for one purpose; deliver the most nitrous volume possible for a single solenoid. With a 0.178" outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid. The TC178 base is also constructed of 6061 Aluminum and then clear anodized. This reduces the weight by 1/4 of a pound over the NOS Super BigShot Trash Can Solenoid, and still retains the mounting location on the base. If maximum power from a single stage of nitrous is what you need, get the new NOS TC17 Current Draw is 20 Amps at 12 volts DC. This Solenoid can be used with a progressive controller
Features:
  • Supports in excess of 900 horsepower

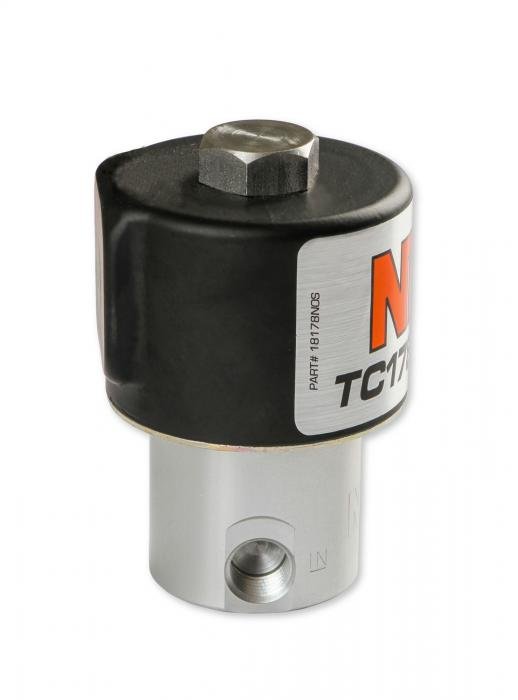

  • Inlet Port Size - 1/4" NPT (Side)
  • Outlet Port Size - 1/8" NPT (Bottom)
  • Purge Port Size - 1/8" NPT (Side)
  • Orifice - 0.178"
  • Plunger - PTFE
  • Light Weight Aluminum - 1.66 lbs.
  • Material - 6061 Aluminum
  • Saves 1/4 lb. over similar steel solenoids

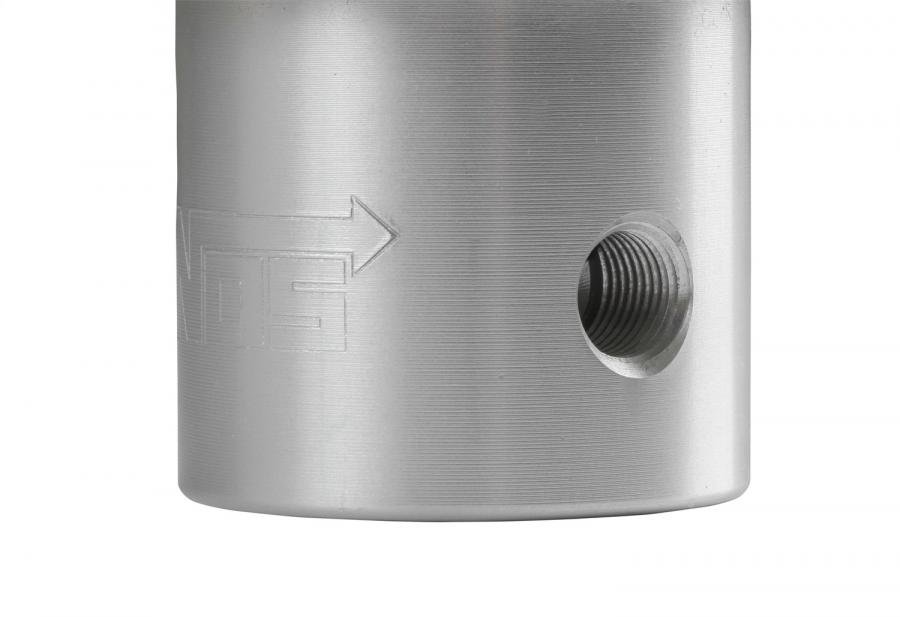

The TC178 offers a 1/8" NPT bottom exit and a 1/8" NPT purge port. The side purge port must be plugged if not used.
Installation Notes:
The TC178 offers a 1/8" NPT bottom exit and a 1/8" NPT purge port. The side purge port must be plugged if not used.

Videos:

Specifications:

Amp Draw 20A, 20A
Bracket(s) Included No
Color Black
Emission Code 4
Finish Natural
Fittings Included No
Inlet Side
Inlet Attachment Female Threads
Inlet Thread 1/4" NPT
Material 6061-T6 Aluminum
Max Horsepower 900
Orifice 0.178"
Outlet Bottom
Outlet Attachment Female Threads
Outlet Thread 1/8" NPT
Part Type Nitrous Oxide Solenoid
Plunger Material PTFE
Product Line TC178
Product Type Nitrous Solenoid
Purge Port 1/8" NPT
Solenoid Top Cover Color Black
