Intellitronix 1963-1967 Corvette LED Digital Bargraph Panel BG2000

Intellitronix 1963-1967 Corvette LED Digital Bargraph Panel BG2000
Intellitronix 1963-1967 Corvette LED Digital Bargraph Panel BG2000Intellitronix 1963-1967 Corvette LED Digital Bargraph Panel BG2000Intellitronix 1963-1967 Corvette LED Digital Bargraph Panel BG2000
from $642.99 ea

Available Options

*
Model: 3927275
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
SELECT
OPTIONS

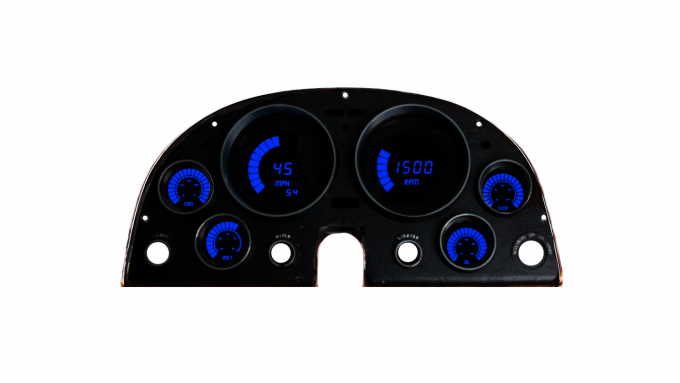

1963-1967 Corvette LED Digital Bargraph Replacement Panel - BG2000

Your 1963-67 Corvette will look fabulous with this jaw dropping Intellitronix direct fit 63-67 Corvette LED Digital Bargraph Replacement Panel. The 1963-67 Corvette LED Digital Bargraph Panel comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature sending unit, oil pressure sending unit, and speedometer sending unit with senders and sensors for vehicles without electronic transmission or cruise control, and instructions for installation.

The 63-67 Corvette replacement panel features a custom-designed LED bargraph, is microprocessor-controlled with peak rpm memory recall, automatic night dimming and RPM activated switch that handles 3 amps. Red is best for night driving.

The 1963-67 Corvette LED Digital Bargraph Replacement Panel is only 3 3/8 inches in diameter and 1 1/2 inches deep.

Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.

Tachometer has a 0-9999 readout in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999).  It works on 1-2-4-6-8-10-12-cylinder engines.

Water Temperature display reads 160° to 240°F range and includes sending unit S8013. Please add a note at checkout if you need a 3/8" bushing, because we send the more common 1/2" bushing. Otherwise, you will have to purchase the bushing on your own.

Oil Pressure reads 0-80 PSI range. Oil pressure sending unit is included.

Voltmeter displays 12-16 volt range and no sending unit required.

Fuel Level displays Empty to Full in 1/4 increments and works with most existing fuel level sending unit and is set at industry standard 0-90. Please include a note, if your sender works off a different Ohms range.

The panel features turn signals, high beam, in-dash mounting hardware and installation instructions.

Easy Install, Lifetime Warranty, Great Price and Gauges for your very special classic vehicle.

BEZEL NOT INCLUDED

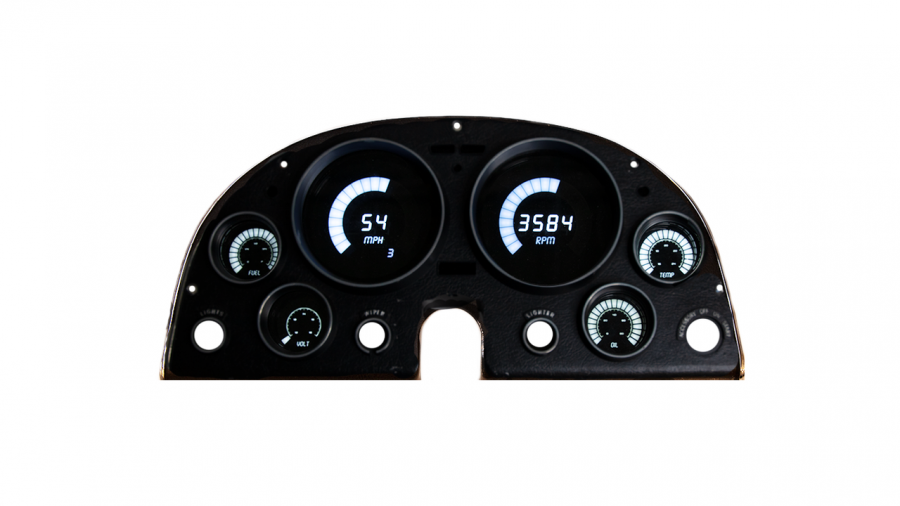

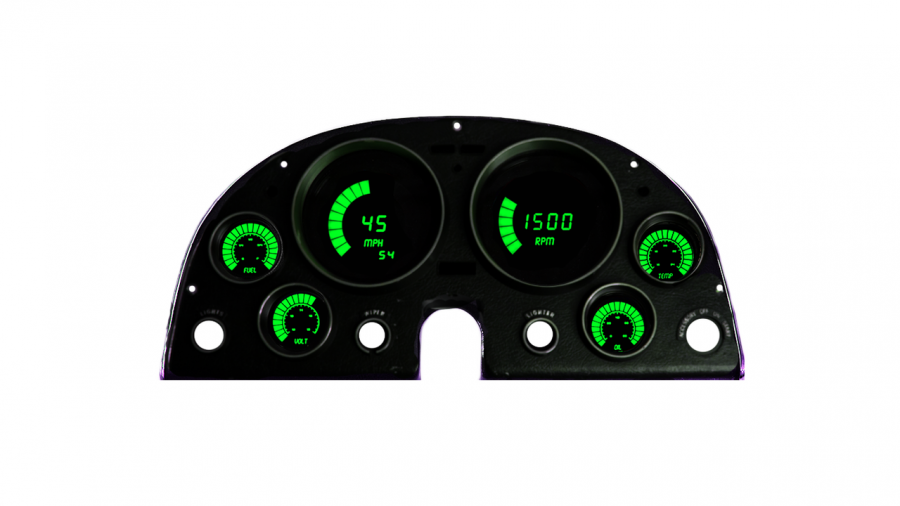

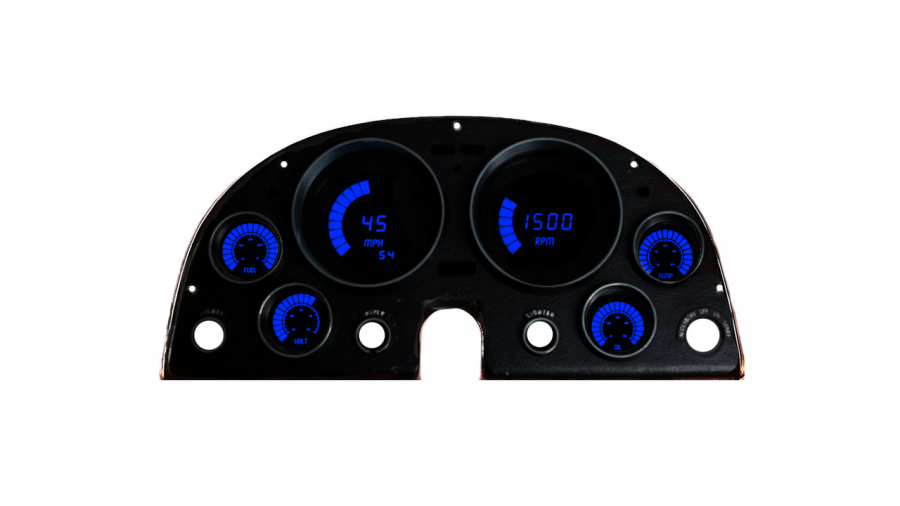

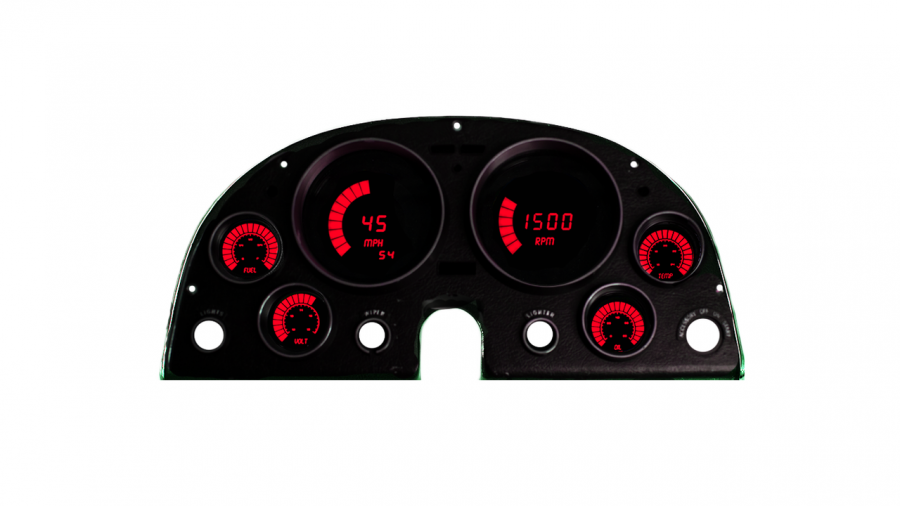

AVAILABLE COLORS:  White, Red, Blue and Green

SPEEDOMETER READING:  Order your speedometer in either MPH or KPH

ACCESSORIES:  All required sending and sensor units are included.

About Intellitronix

Intellitronix Corp is an industry leader, manufacturing LED lighting and microprocessor-controlled LED products, which are first-class, energy-saving devices for the automotive electronic, marine, and recreational vehicle markets. Intellitronix has a wide range of best-selling automotive electronics, accessories, and digital gauges sold and distributed internationally. Intellitronix’s products are manufactured in a state-of-the-art facility in Eastlake, Ohio using top-quality materials and specialized equipment.

LEDs have become the powerhouse of the lighting world surpassing traditional light bulbs, television and computer screen illumination, being seen in trendsetting applications like headlights and taillights in cars, trucks, and daytime running and off-road lighting. Not only does Intellitronix understands the power and importance of utilizing LEDs but has the genius and expertise to put this knowledge into practice.

In addition, Intellitronix products have dominated areas of the marine industry with the creation of a unique, more efficient GPS controlled marine speedometer, and its Prometheus Ignition System to guard against ignition failures. The RV market is benefiting from Intellitronix new 4-IN-1 Energy Management Multifunctional System (EMMS) for recreational vehicles. The 4-in-1 unit incorporates energy management and load shedding, a breaker panel, automatic transfer switch, automatic generator starter plus display unit, Bluetooth, WiFi and multiplexing capabilities.

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet Corvette 1963 - 1967

Specifications:

Color Red, Blue, Green, White
Speedometer & Temperature MPH & Fahrenheit, KMH & Celsius
Warranty LIFETIME FACTORY WARRANTY
