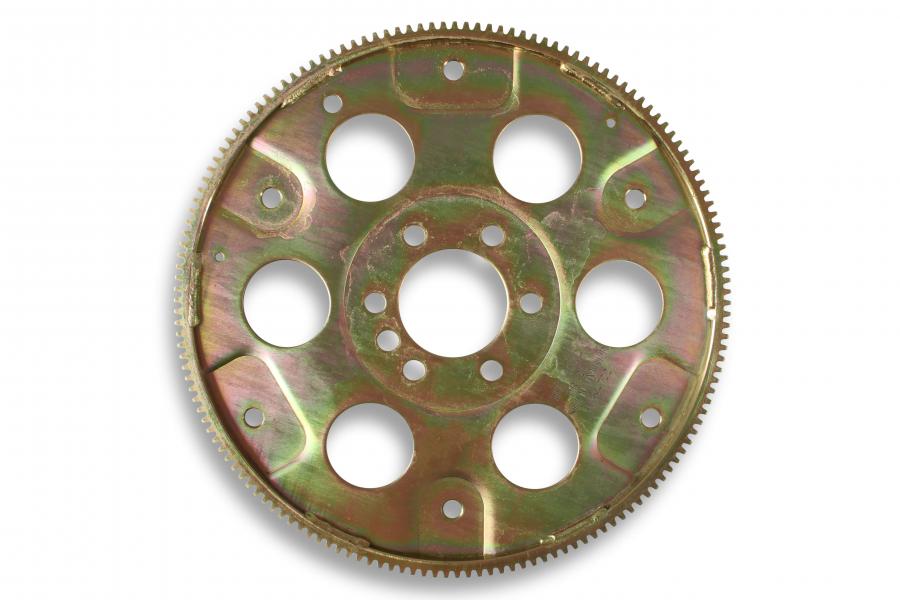

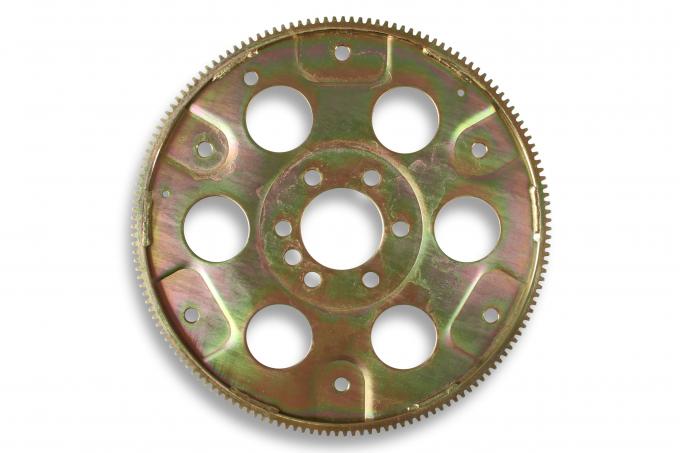

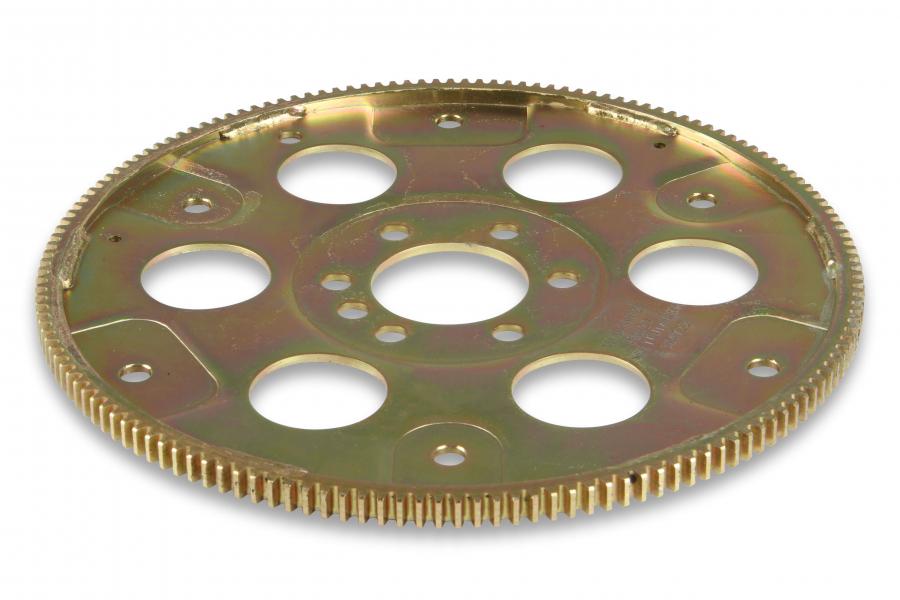

Hays Steel SFI Certified Flexplate, Chevrolet Small Block and GM 90 Degree V6 10-012

Hays Steel SFI Certified Flexplate, Chevrolet Small Block and GM 90 Degree V6 10-012
Hays Steel SFI Certified Flexplate, Chevrolet Small Block and GM 90 Degree V6 10-012
$192.99 ea
NEWARRIVING SOONEstimated Ship Date 05/23/2024 (If Ordered Today)12 Available from HOLLEY PERFORMANCE PRODUCTS as of 05/01/2024
Model: 4006729
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
Hays heavy-duty flexplates for high-performance and competition engines are constructed of a thicker than stock steel plate, enabling them to withstand the stress of high-stall torque converters and today's high-RPM engines. While factory stock plates tend to crack around the crankshaft hub when punished under high torque and RPM conditions, the thicker Hays Flexplate handles the force. These H.D. flexplates are supplied with a ring gear that is securely welded in place and feature dual bolt patterns for flexibility in adapting to multiple transmission style torque converters. All Hays heavy-duty flexplates are zinc-dichromate plated to resist corrosion and are SFI certified under specification 29.1.
Features:
  • S.F.I. 29.1 Certified
  • 153 Tooth Ring Gear
  • Internal Balance Chevy V6 Engines
  • Zinc Dichromate Plated
  • Heavy Duty
  • 0.030" thicker than the stock flexplate

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine
Chevrolet Corvette Base 1962 5.3L / 327 / V8
Chevrolet Corvette Base 1963 5.3L / 327 / V8
Chevrolet Corvette Base 1964 5.3L / 327 / V8
Chevrolet Corvette Base 1965 5.3L / 327 / V8
Chevrolet Corvette Base 1966 5.3L / 327 / V8
Chevrolet Corvette Base 1967 5.3L / 327 / V8
Chevrolet Corvette Base 1968 5.3L / 327 / V8
5.4L / 327 / V8
Chevrolet Corvette Base 1969 5.7L / 350 / V8
Chevrolet Corvette Base 1970 5.7L / 350 / V8
Chevrolet Corvette Base 1971 5.7L / 350 / V8
Chevrolet Corvette Base 1972 5.7L / 350 / V8
Chevrolet Corvette Base 1973 5.7L / 350 / V8
Chevrolet Corvette Base 1974 5.7L / 350 / V8
Chevrolet Corvette Base 1977 5.7L / 350 / V8
Chevrolet Corvette Base 1978 5.7L / 350 / V8
Chevrolet Corvette Base 1979 5.7L / 350 / V8
Chevrolet Corvette Base 1980 5.0L / 305 / V8
5.7L / 350 / V8
Chevrolet Corvette Base 1981 5.7L / 350 / V8
Chevrolet Corvette Base 1982 5.7L / 350 / V8
Chevrolet Corvette Base 1984 5.7L / 350 / V8
Chevrolet Corvette Base 1985 5.7L / 350 / V8
Chevrolet Corvette Collector's Edition 1982 5.7L / 350 / V8
Chevrolet Corvette Indianapolis 500 Pace Car 1978 5.7L / 350 / V8
Chevrolet Corvette Silver Anniversary Edition 1978 5.7L / 350 / V8
Chevrolet Corvette Stingray 1975 5.7L / 350 / V8
Chevrolet Corvette Stingray 1976 5.7L / 350 / V8

Specifications:

# of Teeth 153
Application Chevrolet
Center Bore (Register Diameter) 2.490"
Emission Code 5
Engine Small Block Chevy
Engine Balance Internal
Material Steel
Part Type Automatic Transmission Flexplate
Product Type Flexplates
SFI Approved Yes
SFI Certification 29.1
Warranty 90 Day TX, 90 Day
