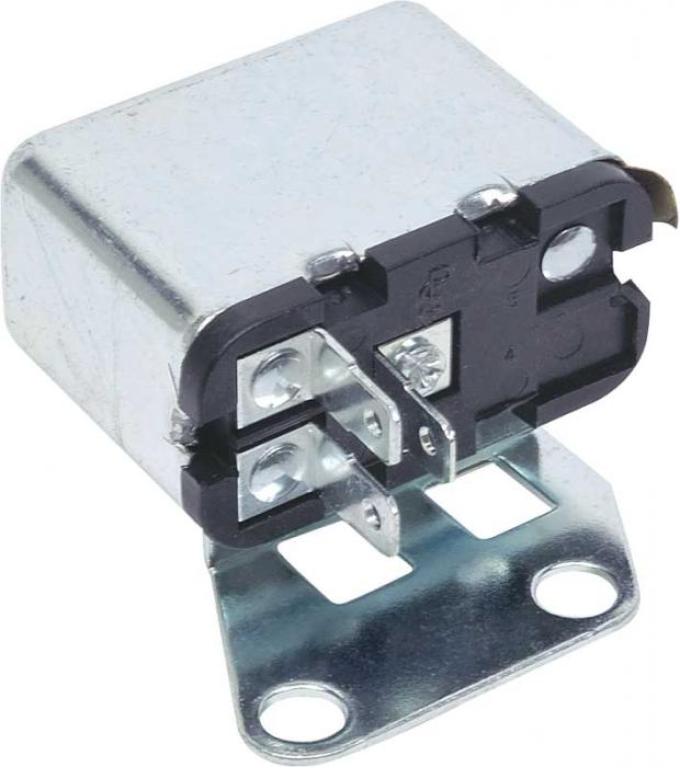

Direct-fit replacement relay for Chevrolet Corvette power windows and early anti-theft alarm circuits. Designed to restore reliable operation to classic Corvettes, this compact relay replicates OEM switching function to control window motors and early alarm systems, improving electrical consistency and vehicle security. Built for durability and straightforward installation, it’s an essential component when refurbishing or maintaining 1960s–1980s Corvette electrical systems.
Features:
- Fits 1967–1982 Chevrolet Corvette for power window applications and 1968–1977 Corvettes requiring the early anti-theft alarm relay.
- Direct-replacement electrical relay that restores OEM switching for power window motors and early alarm circuits.
- Durable construction with robust contacts for consistent conductivity and long service life.
- Simple plug-and-play design for straightforward swap-in replacement without cutting or splicing.
- Ideal for restoration projects and routine maintenance to eliminate intermittent operation or electrical faults.
Installation / Application:
- Difficulty: 2/5
- Estimated time: 15–30 minutes
Instructions:
- Park vehicle on a level surface, set parking brake, and disconnect the negative battery terminal to prevent shorts.
- Locate the relay panel or relay mounting area (commonly under the dash, behind the glove box, or in the relay/fuse panel depending on model year).
- Remove any trim or access panels to reach the relay. Keep screws and fasteners in a safe place.
- Identify the faulty relay and note its orientation and connector pin layout. Compare the old relay to the replacement to confirm match.
- Carefully unplug the wiring connector from the old relay. If stuck, gently depress the release tab and pull straight out.
- Remove the old relay and insert the replacement relay in the correct orientation. Apply a small amount of dielectric grease to terminals if desired.
- Reconnect the wiring connector, reassemble access panels, and reconnect the negative battery terminal.
- Test the power windows for smooth operation and verify alarm-related circuits (if applicable) to confirm correct installation.
- Reinstall any remaining trim and double-check that all fasteners are secure.
About Redline Restomotive
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Crafted for both durability and aesthetic accuracy, Redline Restomotive® parts are ideal for those who value authenticity in their restoration projects. Whether restoring a car for display, personal enjoyment, or roadworthiness, customers rely on Redline Restomotive® for parts that not only fit perfectly but also contribute to the overall integrity and longevity of the vehicle. Each item is carefully engineered to replicate the fit, finish, and functionality of original components, making Redline Restomotive® a trusted name in restoration circles.
The extensive product catalog from Redline Restomotive® covers a wide variety of categories, allowing classic car owners to source everything from essential mechanical parts to subtle interior details. This comprehensive approach enables a cohesive restoration experience, where customers can confidently maintain both the exterior and interior authenticity of their vehicles. With Redline Restomotive®, every detail matters, providing the perfect balance between innovation and tradition for classic car preservation.
For more information or to explore their product offerings, you can visit retailers such as Muscle Cars & Classics, which feature a comprehensive selection of Redline Restomotive® products.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Corvette |
1967 - 1982 |
IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.
