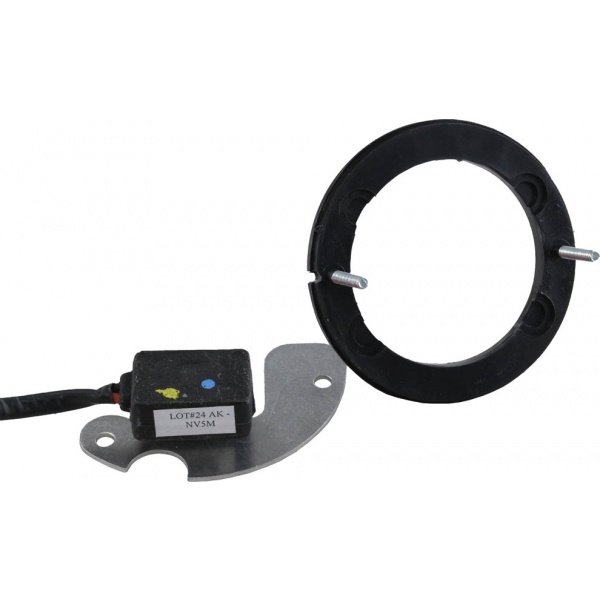

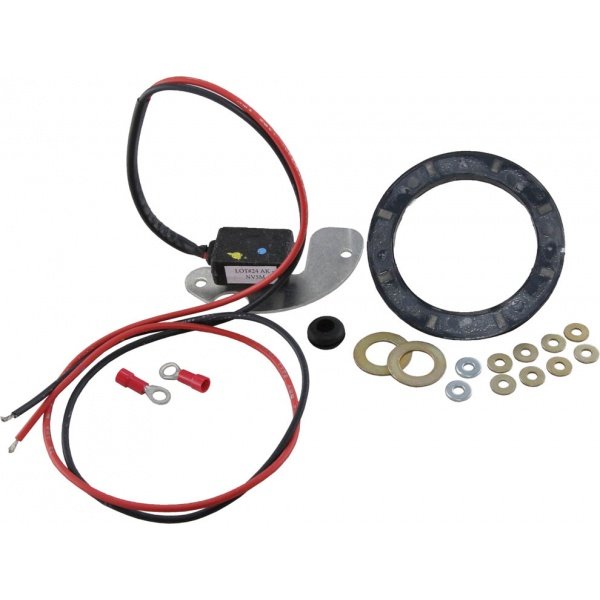

Ignitor Electronic Ignition System | Pertronix 1181, 1962-1974

• Delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life.
• 2:1 improvement over points in current fall time for increased coil output.
• Rotating cobalt magnets trigger a Hall Effect integrated circuit . ...no points to burn, ...no moving parts to wear out.
• Epoxy molding makes our module impervious to dirt, oil, grease and moisture.
• Fits entirely inside the distributor.
• No "black box to clutter the engine compartment.
• Stable timing ...no need for any adjustments.
• Will trigger most multi-spark CD ignitions.
• Use with Flame-Thrower® 40,000 volt coil for optimal performance.
• Available for 6 and 12-volt negative and positive ground systems.
• Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-2).
• Guaranteed for 30 months.

SPECIFICATIONS:

• Operating Voltage: 8-V to 16-V DC
• Temperature Range: -50 to 300F
• RPM Range: 0 to 15,000 RPM
• 12-V NEG Ground (some 6-V NEG, 6 &amp 12-V POS ground kits available)
• System is designed for use with most point-type coils, optimal performance achieved when used with our Flame-Thrower® 40,000 volt coil.
• Never Change Points Again! Works great in stock point-type distributors as a trigger for multi-spark CD ignitions, eliminating the need for expensive aftermarket distributors.
• No complicated wiring makes installation easy.
• A solid-state electronic ignition system. "Never change points again!"
