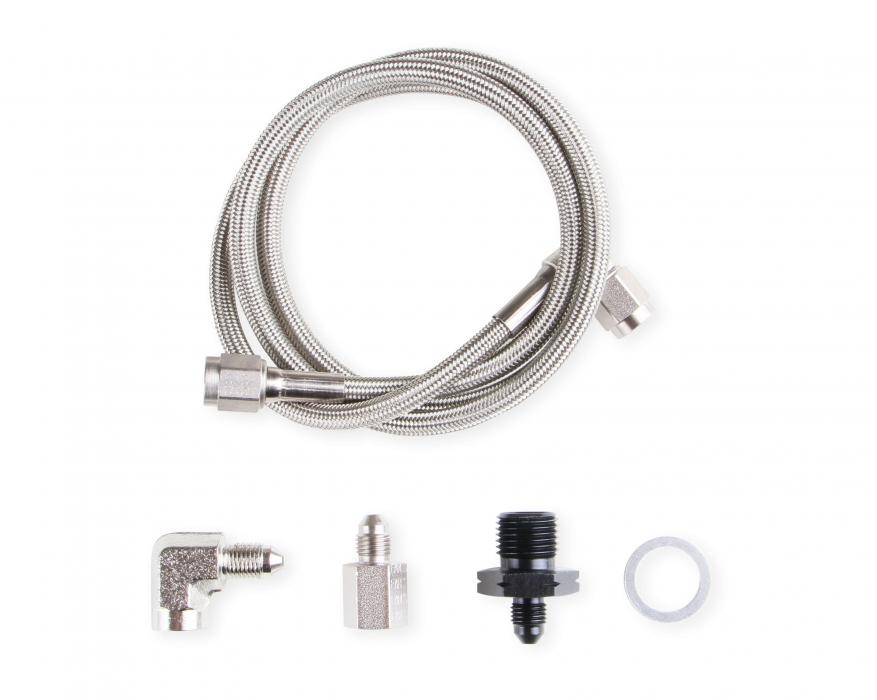

This handy kit from Earl's includes all the parts needed to install a mechanical oil pressure gauge on the GM LS engine. This kit includes the special 16mm x 1.5 adapter fitting w/ crush washer (fits oil passage at the top rear of the LS engine block), pre-made -3 AN Speed-Seal® hose assembly, and two adapters for the gauge end of the hose. Choose the kit that fits your vehicle application w/ 36", 48", or 72" long hose. This kit is ideal for engine swaps & race cars that use a mechanical oil pressure gauge w/ the GM LS engine.
Features:
- Kit Includes Adapters & Hose for Mechanical Oil Pressure Gauge Installation w/ GM LS Series Engines
- Includes Most Common Adapters Needed For Installation of Gauge

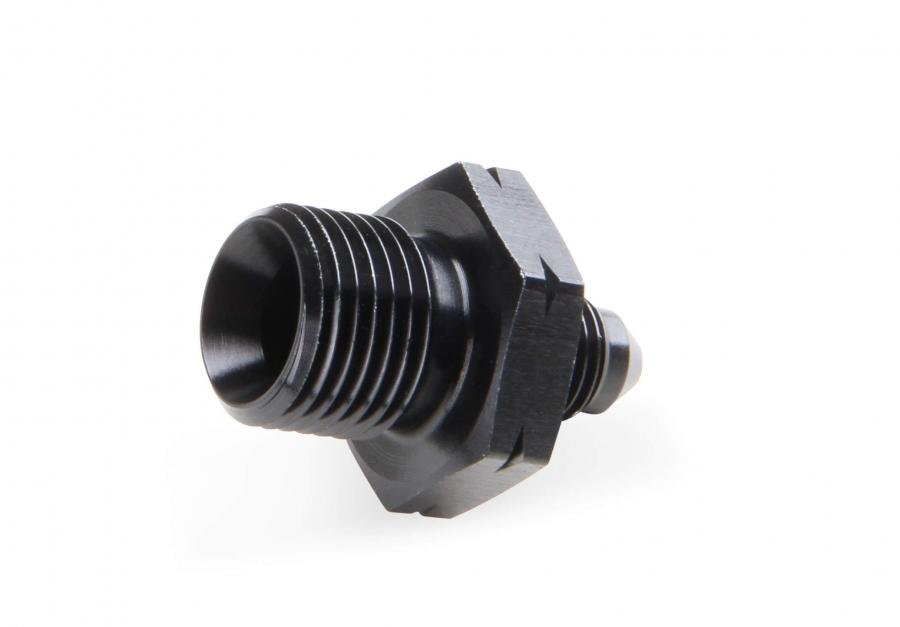

- Block Adapter: -3 AN to M16 x 1.5 Aluminum w/ Black Anodized Finish (AT9919AFJERL) w/ Crush Washer

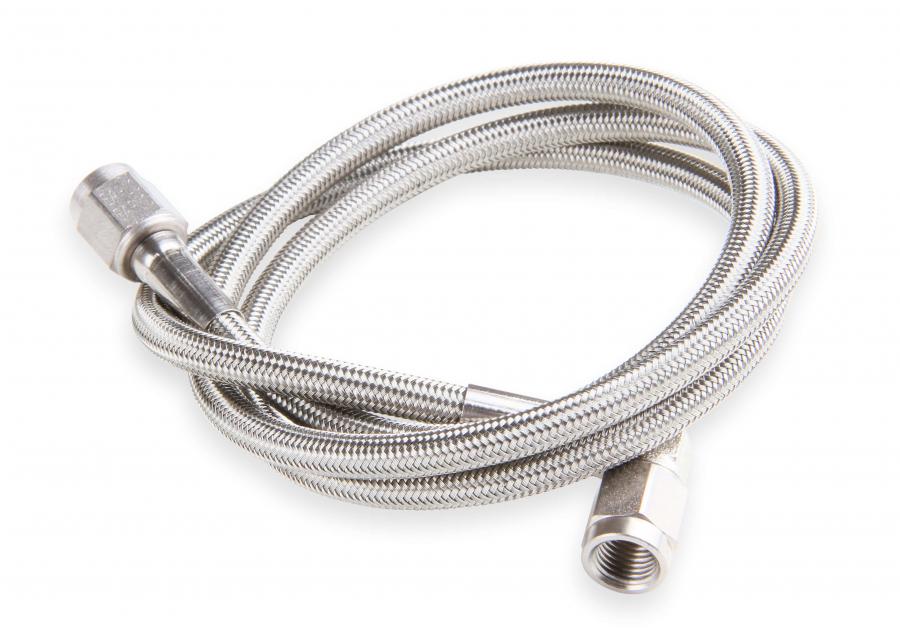

- Pre-Made Crimped Style Speed-Seal® Hose Assembly -3 AN Straight to 90 Degree Ends

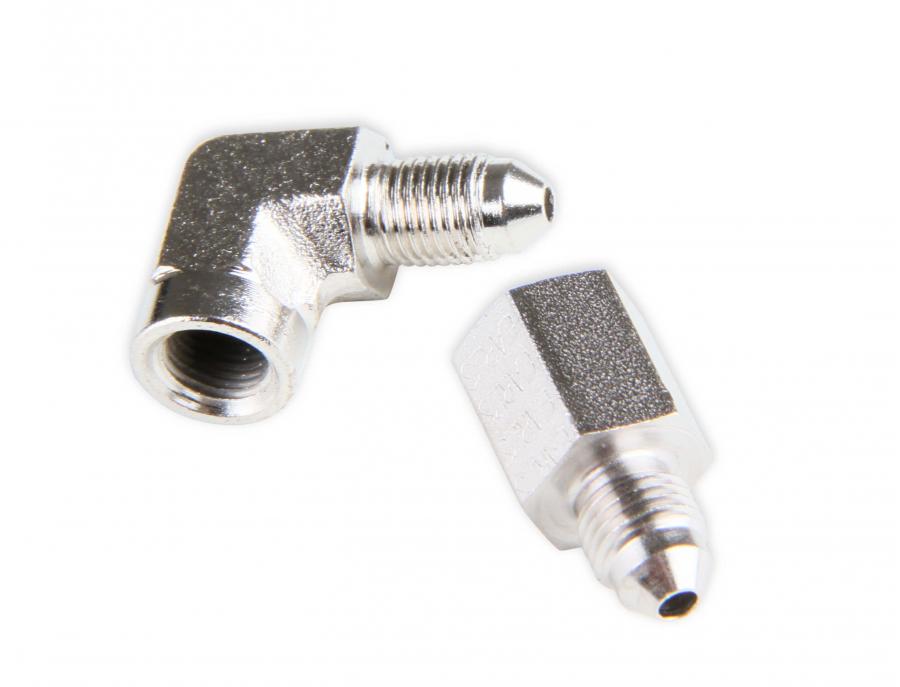

- Gauge Adapters: -3 AN to 1/8" NPT Female Straight & 90 Degree (968703ERL & 968603ERL) Steel w/ Nickel Plating
- Ideal for Plumbing Mechanical Oil Pressure Gauge w/ 1/8" NPT Inlet Port
- Fits GM LS Series Engines
The M16 Adapter that screws into the top rear of the block is a straight thread metric design that is sealed using the included crush washer (do not use sealant or
EARL'S, PFTE tape on these threads).
Installation Notes:
The M16 Adapter that screws into the top rear of the block is a straight thread metric design that is sealed using the included crush washer (do not use sealant or
PFTE tape on these threads).
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Submodel |
Years |
Engine |
| Chevrolet |
Corvette |
427 Limited Edition Z06 |
2008 |
7.0L / 427 / V8 |
| Chevrolet |
Corvette |
427 |
2013 |
7.0L / 427 / V8 |
| Chevrolet |
Corvette |
50th Anniversary Edition Pace Car |
2003 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
50th Anniversary Edition |
2003 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Base |
1997 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Base |
1998 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Base |
1999 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Base |
2000 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Base |
2001 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Base |
2002 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Base |
2003 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Base |
2004 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Base |
2005 |
6.0L / 364 / V8 |
| Chevrolet |
Corvette |
Base |
2006 |
6.0L / 364 / V8 |
| Chevrolet |
Corvette |
Base |
2007 |
6.0L / 364 / V8 |
| Chevrolet |
Corvette |
Base |
2008 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
Base |
2009 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
Base |
2010 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
Base |
2011 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
Base |
2012 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
Base |
2013 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
Grand Sport |
2010 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
Grand Sport |
2011 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
Grand Sport |
2012 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
Grand Sport |
2013 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
Indianapolis 500 Pace Car |
1998 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Z06 Carbon |
2011 |
7.0L / 427 / V8 |
| Chevrolet |
Corvette |
Z06 |
2001 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Z06 |
2002 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Z06 |
2003 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Z06 |
2004 |
5.7L / 350 / V8 |
| Chevrolet |
Corvette |
Z06 |
2006 |
7.0L / 427 / V8 |
| Chevrolet |
Corvette |
Z06 |
2007 |
7.0L / 427 / V8 |
| Chevrolet |
Corvette |
Z06 |
2008 |
7.0L / 427 / V8 |
| Chevrolet |
Corvette |
Z06 |
2009 |
7.0L / 427 / V8 |
| Chevrolet |
Corvette |
Z06 |
2010 |
7.0L / 427 / V8 |
| Chevrolet |
Corvette |
Z06 |
2011 |
7.0L / 427 / V8 |
| Chevrolet |
Corvette |
Z06 |
2012 |
7.0L / 427 / V8 |
| Chevrolet |
Corvette |
Z06 |
2013 |
7.0L / 427 / V8 |
| Chevrolet |
Corvette |
ZR1 |
2009 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
ZR1 |
2010 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
ZR1 |
2011 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
ZR1 |
2012 |
6.2L / 376 / V8 |
| Chevrolet |
Corvette |
ZR1 |
2013 |
6.2L / 376 / V8 |
