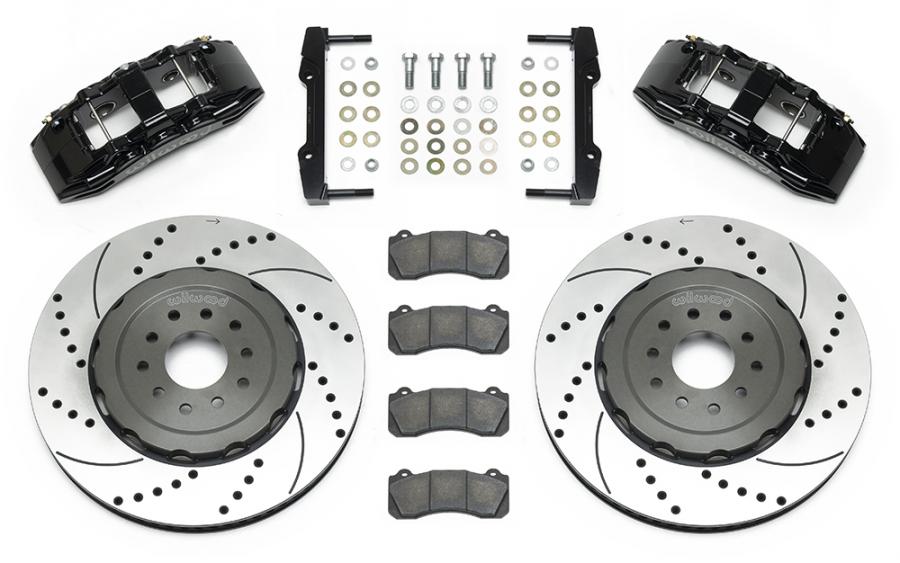

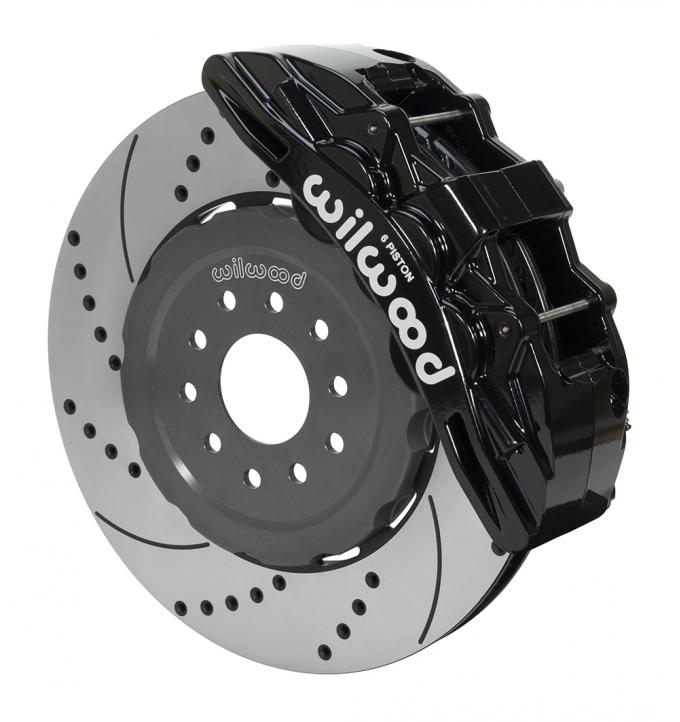

Wilwood Brakes SX6R Big Brake Dynamic Front Brake Kit 140-15311-D

Wilwood Brakes SX6R Big Brake Dynamic Front Brake Kit 140-15311-D
Wilwood Brakes SX6R Big Brake Dynamic Front Brake Kit 140-15311-DWilwood Brakes SX6R Big Brake Dynamic Front Brake Kit 140-15311-DWilwood Brakes SX6R Big Brake Dynamic Front Brake Kit 140-15311-DWilwood Brakes SX6R Big Brake Dynamic Front Brake Kit 140-15311-DWilwood Brakes SX6R Big Brake Dynamic Front Brake Kit 140-15311-D
$6,983.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 03/28/2024
Model: 3922268
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

SX6R calipers were designed for the specific purpose of providing high capacity braking with large diameter rotors for extreme duty and race vehicles. It is the largest dual purpose caliper Wilwood has produced, providing big brake performance for show and dual purpose street and track vehicles. Offering additional enhanced braking with wheel and tire upgrades. Kits are fully compatible with OE master cylinder output and ABS function. Directional 72 staggered vane 14.00” to 15.00”rotors provide maximum cooling for sustained high heat durability.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1284.pdf458.94KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet Corvette 427 2013 KIT,FRONT,VETTE,97-13,SX6R,LUG DRIVE 15.00 ROTOR,SRP; RTR:15.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
Chevrolet Corvette Base 2009 - 2013 KIT,FRONT,VETTE,97-13,SX6R,LUG DRIVE 15.00 ROTOR,SRP; RTR:15.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
Chevrolet Corvette Base 2005 - 2008 KIT,FRONT,VETTE,97-13,SX6R,LUG DRIVE 15.00 ROTOR,SRP; RTR:15.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
C-6 - Base
Chevrolet Corvette Grand Sport 2010 - 2013 KIT,FRONT,VETTE,97-13,SX6R,LUG DRIVE 15.00 ROTOR,SRP; RTR:15.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
Chevrolet Corvette Z06 Carbon 2011 KIT,FRONT,VETTE,97-13,SX6R,LUG DRIVE 15.00 ROTOR,SRP; RTR:15.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
Chevrolet Corvette Z06 2009 - 2013 KIT,FRONT,VETTE,97-13,SX6R,LUG DRIVE 15.00 ROTOR,SRP; RTR:15.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
Chevrolet Corvette Z06 2006 - 2008 KIT,FRONT,VETTE,97-13,SX6R,LUG DRIVE 15.00 ROTOR,SRP; RTR:15.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
C-6-Z06 Models
Chevrolet Corvette ZR1 2009 - 2013 KIT,FRONT,VETTE,97-13,SX6R,LUG DRIVE 15.00 ROTOR,SRP; RTR:15.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
Chevrolet Corvette 1997 - 2004 KIT,FRONT,VETTE,97-13,SX6R,LUG DRIVE 15.00 ROTOR,SRP; RTR:15.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
C-5 & Z06 Models

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced Yes
Left Hand - Part No 165-15343
Material Spec-37 Iron
Outside Diameter (in) 15.00
Right Hand - Part No 165-15342
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor
Vane Count 72 CV
Width (in) 1.25
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
O-ring Kit 130-5972
Pad Retainer 180-14649
Replacement Dustboot Call
Replacement Piston 1 200-7519
Replacement Piston 2 200-7513
Replacement Piston 3 200-7513
Wear Plate - Left Hand 300-5876
Wear Plate - Right Hand 300-5876
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 X 4.50
Bolt Circle 2 5 X 4.75
Finish Color Type III Anodize
Hat - Part No 170-14992
Hat Offset Dimension (in) 0.290
Material Aluminum
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.520
Stud Diameter - BC 3 0.000
Type Big Brake Dynamic Lug Drive - Short Offset
Parts & Accessories / Hat
Bolt Kit 300-14913
Kit Components & Specs / Calipers
Brake Pad Area (In²) 15.9
Brake Pad Plate D1792
Brake Pad Volume (In³) 7.66
Finish Color Black Powder Coat
Left Hand - Part No 120-14863-BK
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.12
Piston 3 Bore (in) 1.12
Piston Area (In²) 4.04
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-14862-BK
Type SX6R
Caliper Type 6 - Black Powder Coat
Min Wheel Diameter Req'd* 19
Mount Type Radial
Rotor Diameter 15.00
Spindle Type Factory Disc Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-8176, 220-9100
