Wilwood Brakes Classic Series Dynalite Front Brake Kit 140-14663-R

Wilwood Brakes Classic Series Dynalite Front Brake Kit 140-14663-R
Wilwood Brakes Classic Series Dynalite Front Brake Kit 140-14663-RWilwood Brakes Classic Series Dynalite Front Brake Kit 140-14663-R
$1,306.99 ea
NEWARRIVING SOONEstimated Ship Date 07/26/2024 (If Ordered Today)33 Available from WILWOOD ENGINEERING as of 07/13/2024
Model: 3922093
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.

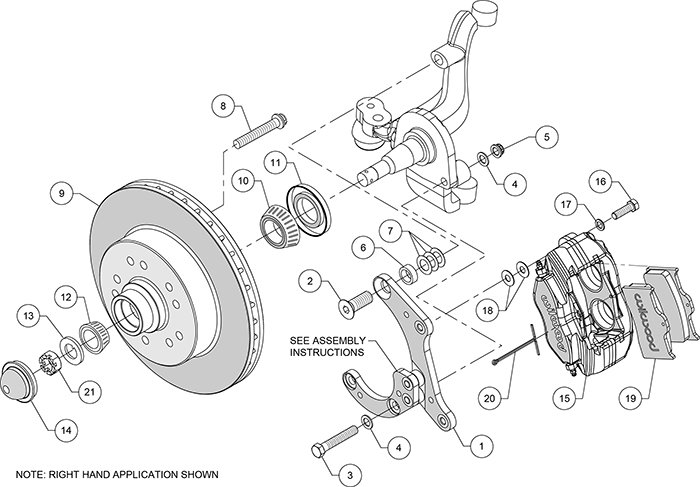

Wilwood's Classic Series front disc brake kits for Chevrolet Full Size vehicles including 1955 to 1957 Chevy, 1958 to 1964 Impala and 1963 to 1964 Corvette offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a large 11.50" x 1.00” rotor and hub assembly. Based on the Forged Dynalite-M caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular aftermarket 15" (disc brake) wheels. FDL-M 1 piece kits can be used with either manual or power boost master cylinders. Kits are complete with calipers, rotors and, hub assembly brackets, hardware.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.


Download Name File Size

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
C-2 Models


Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type ULHP
Dynamically Balanced No
Left Hand - Part No 160-14653
Material Iron
Outside Diameter (in) 11.50
Right Hand - Part No 160-14653
Style Plain Face
Surface Finish Plain
Type 1 PC Hub and Rotor
Vane Count Vented
Width (in) 1.00
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2655
Pad Retainer 180-0056
Replacement Piston 1 200-7528
Replacement Piston 2 200-7528
Wear Plate - Left Hand 300-5875
Wear Plate - Right Hand 300-5875

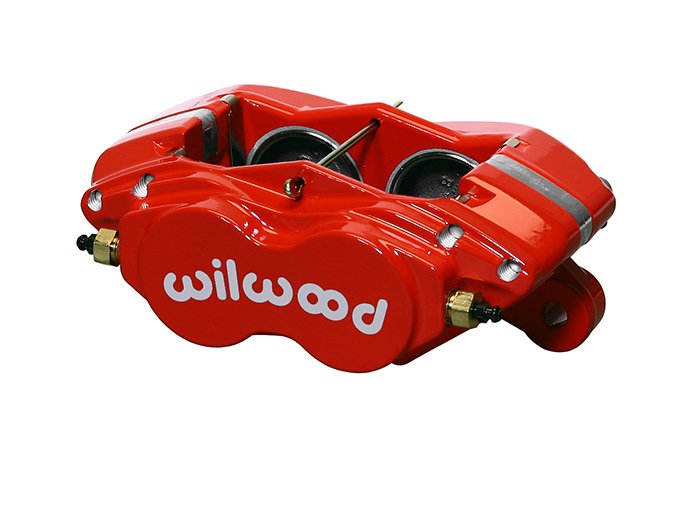

Kit Components & Specs / Calipers
Brake Pad Area (In²) 6.36
Brake Pad Plate 7112
Brake Pad Volume (In³) 2.1
Finish Color Red Powder Coat
Left Hand - Part No 120-13551-RD
Mount Type Lug
Pad Compound BP-10
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.75
Piston Area (In²) 4.80
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-13551-RD
Type Forged Dynalite-M
(Increase / Decrease Track Width)
Caliper Type 4 - Red Powder Coat

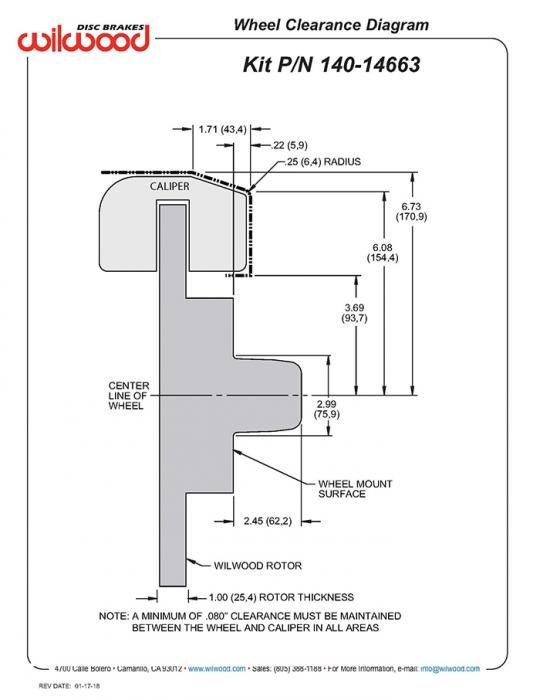

Min Wheel Diameter Req'd* 15
Mount Type Lug
Rotor Diameter 11.50
Spindle Type Factory Drum Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-7699
Kit Summary
OE Hub Offset +.34
