Wilwood Brakes 2014-2019 Chevrolet Corvette AERO4 Big Brake Rear Brake Kit For OE Parking Brake 140-13698-D

Wilwood Brakes 2014-2019 Chevrolet Corvette AERO4 Big Brake Rear Brake Kit For OE Parking Brake 140-13698-D
Wilwood Brakes 2014-2019 Chevrolet Corvette AERO4 Big Brake Rear Brake Kit For OE Parking Brake 140-13698-DWilwood Brakes 2014-2019 Chevrolet Corvette AERO4 Big Brake Rear Brake Kit For OE Parking Brake 140-13698-DWilwood Brakes 2014-2019 Chevrolet Corvette AERO4 Big Brake Rear Brake Kit For OE Parking Brake 140-13698-DWilwood Brakes 2014-2019 Chevrolet Corvette AERO4 Big Brake Rear Brake Kit For OE Parking Brake 140-13698-DWilwood Brakes 2014-2019 Chevrolet Corvette AERO4 Big Brake Rear Brake Kit For OE Parking Brake 140-13698-DWilwood Brakes 2014-2019 Chevrolet Corvette AERO4 Big Brake Rear Brake Kit For OE Parking Brake 140-13698-D
$4,068.99 ea
NEWARRIVING SOONEstimated Ship Date 12/25/2024 (If Ordered Today)9 Available from WILWOOD ENGINEERING as of 12/11/2024
Model: 3921833
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

Fitment Notes

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1067.pdf599.82KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet Corvette Grand Sport 2017 - 2019 KIT,REAR,C7 VETTE 2014-UP,AERO4,14.25 ROTOR,SRP,W/LINES; RTR:14.25-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
Chevrolet Corvette Stingray 2014 - 2019 KIT,REAR,C7 VETTE 2014-UP,AERO4,14.25 ROTOR,SRP,W/LINES; RTR:14.25-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
Chevrolet Corvette Z06 2015 - 2019 KIT,REAR,C7 VETTE 2014-UP,AERO4,14.25 ROTOR,SRP,W/LINES; RTR:14.25-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
Chevrolet Corvette Z51 2014 - 2016 KIT,REAR,C7 VETTE 2014-UP,AERO4,14.25 ROTOR,SRP,W/LINES; RTR:14.25-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT
Chevrolet Corvette ZR1 2019 KIT,REAR,C7 VETTE 2014-UP,AERO4,14.25 ROTOR,SRP,W/LINES; RTR:14.25-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:AERO4, 4-PISTON, BLACK POWDER COAT

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Summary
Axle Offset 0.00
Caliper Type 4 - Black Powder Coat
Min Wheel Diameter Req'd* 18
Mount Type Radial
Rear End Axle OEM
Rotor Diameter 14.25
Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced Yes
Left Hand - Part No 160-11310-BK
Material Spec-37 Iron
Outside Diameter (in) 14.25
Right Hand - Part No 160-11309-BK
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor
Vane Count 72 CV
Width (in) 1.10
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
O-ring Kit 130-2579
Replacement Piston 1 200-7513
Replacement Piston 2 200-7513
Wear Plate - Left Hand 300-5876
Wear Plate - Right Hand 300-5876
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 x 4.75
Bolt Circle 2 5 X 4.72
Bolt Circle 3 5 X 4.50
Finish Color Black E-Coat
Hat - Part No 170-11306
Hat Offset Dimension (in) 0.730
Material Iron
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.640
Stud Diameter - BC 3 0.520
Type Parking Brake Hat - Standard
Parts & Accessories / Hat
Bolt Kit 230-8217

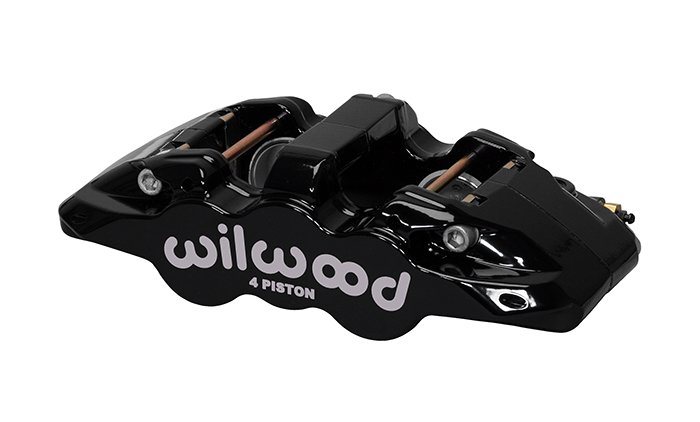

Kit Components & Specs / Calipers
Brake Pad Area (In²) 11.1
Brake Pad Plate 6617
Brake Pad Volume (In³) 5.2
Finish Color Black Powder Coat
Left Hand - Part No 120-13338-BK
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.12
Piston 2 Bore (in) 1.12
Piston Area (In²) 1.98
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-13338-BK
Type AERO4
Parts & Accessories / Brake Lines
Front Line Kit 220-9101
