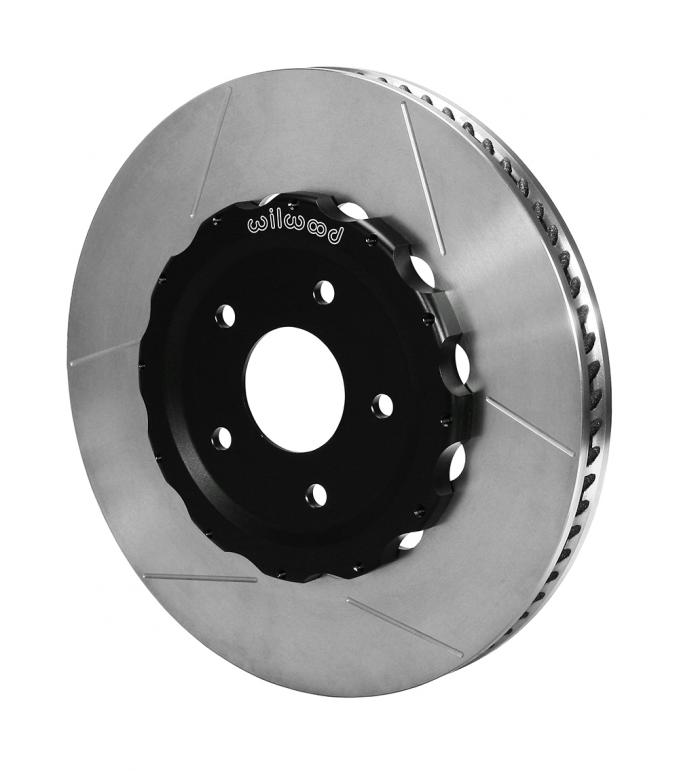

Wilwood Brakes 2006-2013 Chevrolet Corvette Promatrix Front Replacement Rotor Kit 140-12496

Wilwood Brakes 2006-2013 Chevrolet Corvette Promatrix Front Replacement Rotor Kit 140-12496
Wilwood Brakes 2006-2013 Chevrolet Corvette Promatrix Front Replacement Rotor Kit 140-12496Wilwood Brakes 2006-2013 Chevrolet Corvette Promatrix Front Replacement Rotor Kit 140-12496Wilwood Brakes 2006-2013 Chevrolet Corvette Promatrix Front Replacement Rotor Kit 140-12496Wilwood Brakes 2006-2013 Chevrolet Corvette Promatrix Front Replacement Rotor Kit 140-12496Wilwood Brakes 2006-2013 Chevrolet Corvette Promatrix Front Replacement Rotor Kit 140-12496
$1,547.99 ea
NEWARRIVING SOONEstimated Ship Date 07/03/2024 (If Ordered Today)11 Available from WILWOOD ENGINEERING as of 06/18/2024
Model: 3921403
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

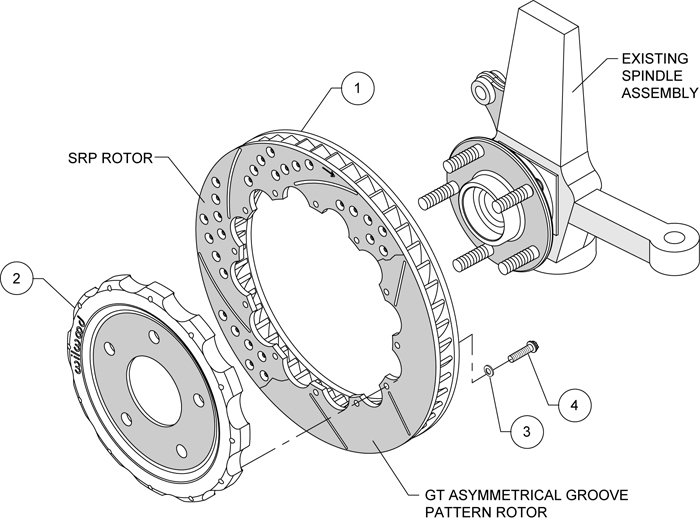

ProMatrix pad, rotor, and flexline upgrade kits offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. High performance pad compounds are specially selected to provide increased brake response and higher resistance against fade. Two-piece directional vane GT rotor kits provide high temperature durability for the track. SRP drilled and slotted black e-coat rotor kits provide high-tech style with corrosion resistance for the street. Stainless steel braided flexlines add style, durability, and firmer response with reduced deflection under load. (-U kits do not containg pads or lines).

Fitment Notes

1. This kit replaces the OE 355mm, 13.97" front discs on all 2006-2013 C6 Corvette Grand-Sport and Z06 models.
2. Recommended for all road race applications when use of the OEM 6 piston calipers is required.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds899.pdf249.66KB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet Corvette Grand Sport 2010 - 2013 KIT,FRONT,PROMATRIX,OE UPGRADE,CORVETTE C6-Z06; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:, 0-PISTON, NO CALIPERS INCLUDED
This kit replaces the OE 355mm, 13.97" front discs on all 2006-2013 C6 Corvette Grand-Sport and Z06 models.
Recommended for all road race applications when use of the OEM 6 piston calipers is required.
Chevrolet Corvette Z06 Carbon 2011 KIT,FRONT,PROMATRIX,OE UPGRADE,CORVETTE C6-Z06; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:, 0-PISTON, NO CALIPERS INCLUDED
This kit replaces the OE 355mm, 13.97" front discs on all 2006-2013 C6 Corvette Grand-Sport and Z06 models.
Recommended for all road race applications when use of the OEM 6 piston calipers is required.
Chevrolet Corvette Z06 2009 - 2013 KIT,FRONT,PROMATRIX,OE UPGRADE,CORVETTE C6-Z06; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:, 0-PISTON, NO CALIPERS INCLUDED
This kit replaces the OE 355mm, 13.97" front discs on all 2006-2013 C6 Corvette Grand-Sport and Z06 models.
Recommended for all road race applications when use of the OEM 6 piston calipers is required.
Chevrolet Corvette Z06 2006 - 2008 KIT,FRONT,PROMATRIX,OE UPGRADE,CORVETTE C6-Z06; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:, 0-PISTON, NO CALIPERS INCLUDED
This kit replaces the OE 355mm, 13.97" front discs on all 2006-2013 C6 Corvette Grand-Sport and Z06 models.
Recommended for all road race applications when use of the OEM 6 piston calipers is required.
C-6-Z06 Models

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit

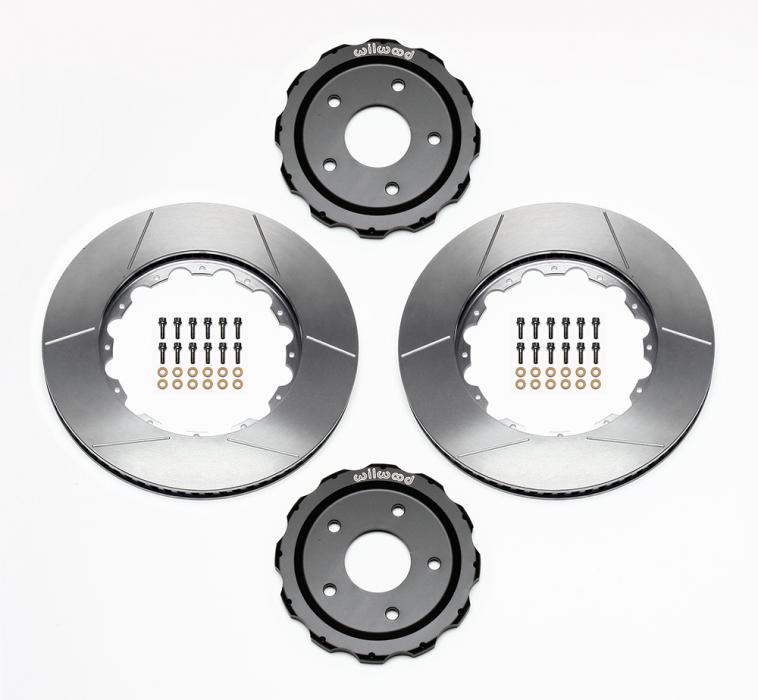

Kit Components & Specs / Rotors
Bedded No
Design Type GT
Dynamically Balanced Yes
Left Hand - Part No 160-12392
Material Spec-37 Iron
Outside Diameter (in) 14.00
Right Hand - Part No 160-12391
Style GT Slotted
Surface Finish Plain
Type GT 72 Curved Vane
Vane Count 72 CV
Width (in) 1.25

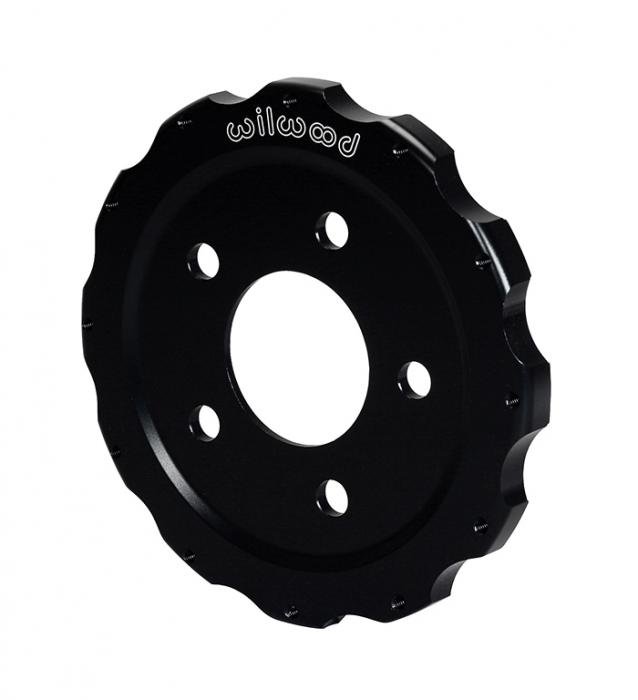

Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 x 4.75
Finish Color Black E-Coat
Hat - Part No 170-12390
Hat Offset Dimension (in) 0.230
Material Aluminum
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Big Brake Hat - Short Offset
Parts & Accessories / Hat
Bolt Kit 230-8008
Caliper Type 0 - No Calipers Included
Min Wheel Diameter Req'd* 18
Rotor Diameter 14.00
Spindle Type Factory Disc Spindle
