Wilwood Brakes 1997-2013 Chevrolet Corvette SLC56 Front Replacement Caliper Kit 140-15173-R

Wilwood Brakes 1997-2013 Chevrolet Corvette SLC56 Front Replacement Caliper Kit 140-15173-R
Wilwood Brakes 1997-2013 Chevrolet Corvette SLC56 Front Replacement Caliper Kit 140-15173-RWilwood Brakes 1997-2013 Chevrolet Corvette SLC56 Front Replacement Caliper Kit 140-15173-RWilwood Brakes 1997-2013 Chevrolet Corvette SLC56 Front Replacement Caliper Kit 140-15173-RWilwood Brakes 1997-2013 Chevrolet Corvette SLC56 Front Replacement Caliper Kit 140-15173-R
$1,196.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 04/07/2024
Model: 3922200
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

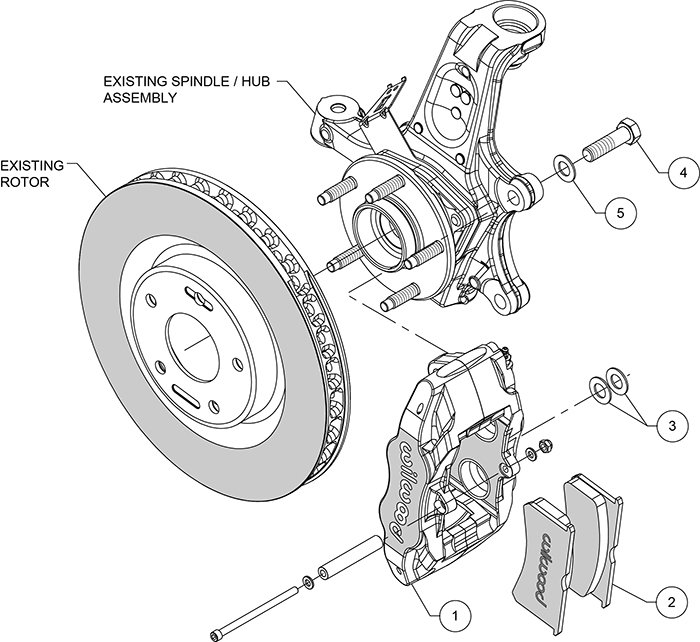

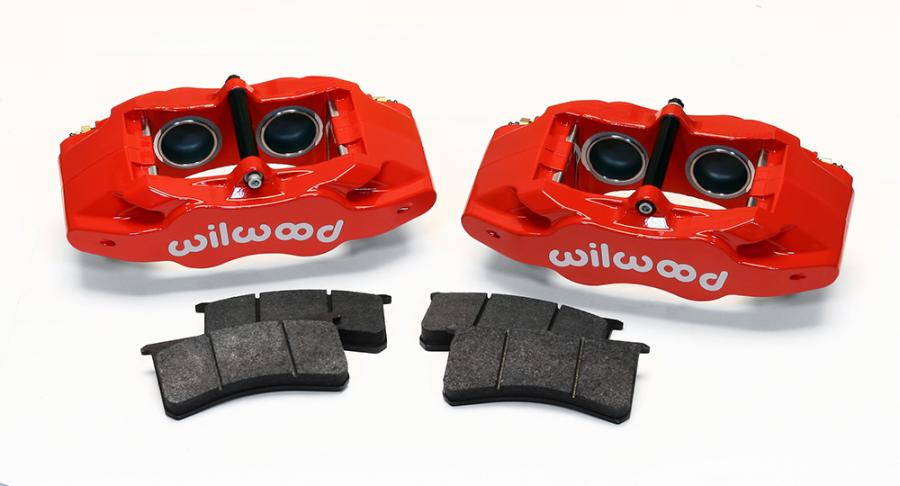

SLC56 front calipers are engineered as a high performance street and custom replacement for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the SLC56 calipers with the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits are a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6’s from 2005 to 2013 using the existing 12.8” diameter OE dimension front rotors. The calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.

Fitment Notes

1. Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.80 diameter front rotor.

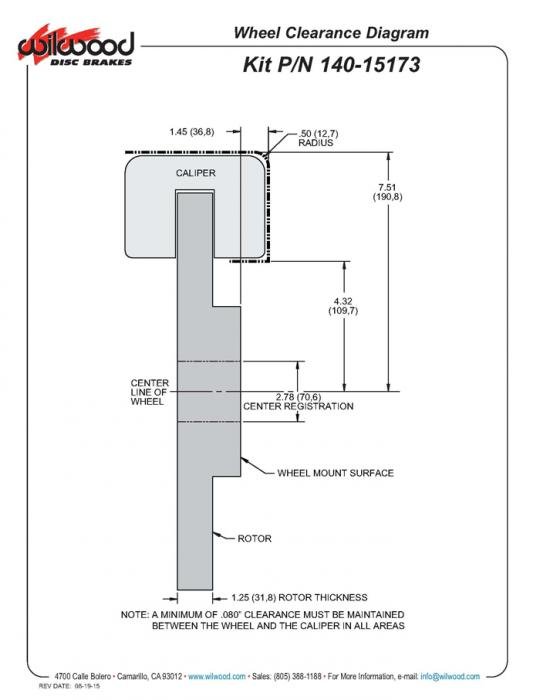

2. SLC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1121.pdf336.92KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet Corvette Base 2009 - 2013 KIT,CALIPER,SLC5/6,FRONT,VETTE,97-13 ALLC5 BASEC6,W/PADS,RED; RTR:-IN DIA, , N/A; CLPR:SLC56, 4-PISTON, RED POWDER COAT
Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.80 diameter front rotor.
SLC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.
Chevrolet Corvette Base 2005 - 2008 KIT,CALIPER,SLC5/6,FRONT,VETTE,97-13 ALLC5 BASEC6,W/PADS,RED; RTR:-IN DIA, , N/A; CLPR:SLC56, 4-PISTON, RED POWDER COAT
Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.80 diameter front rotor.
SLC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.
C-6 - Base
Chevrolet Corvette 1997 - 2004 KIT,CALIPER,SLC5/6,FRONT,VETTE,97-13 ALLC5 BASEC6,W/PADS,RED; RTR:-IN DIA, , N/A; CLPR:SLC56, 4-PISTON, RED POWDER COAT
Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.80 diameter front rotor.
SLC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.
C-5 & Z06 Models

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-4346
Replacement Piston 1 200-7520
Replacement Piston 2 200-7520
Wear Plate - Left Hand 300-6595
Wear Plate - Right Hand 300-6596
Kit Components & Specs / Calipers
Brake Pad Area (In²) 8.2
Brake Pad Plate 7416
Brake Pad Volume (In³) 3.8
Finish Color Red Powder Coat
Left Hand - Part No 120-13915-RD
Mount Type Lug
Pad Compound BP-10
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.62
Piston Area (In²) 4.12
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-13915-RD
Type SLC56
Caliper Type 4 - Red Powder Coat
Min Wheel Diameter Req'd* 17
Mount Type Lug
Spindle Type Factory Disc Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-8021, 220-15194
