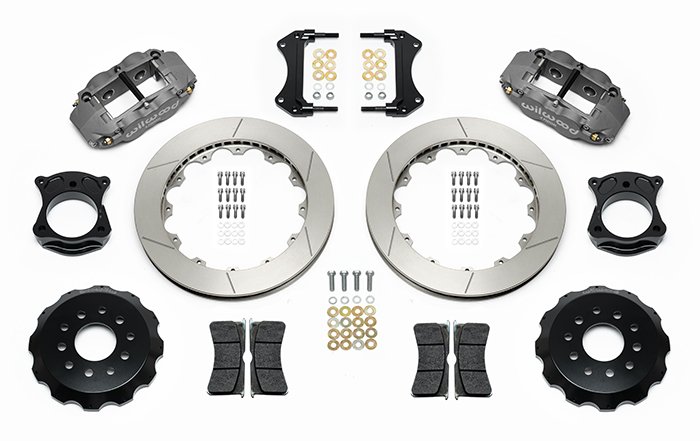

Wilwood Brakes 1988-1996 Chevrolet Corvette Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-14879

Wilwood Brakes 1988-1996 Chevrolet Corvette Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-14879
Wilwood Brakes 1988-1996 Chevrolet Corvette Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-14879Wilwood Brakes 1988-1996 Chevrolet Corvette Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-14879Wilwood Brakes 1988-1996 Chevrolet Corvette Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-14879Wilwood Brakes 1988-1996 Chevrolet Corvette Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-14879Wilwood Brakes 1988-1996 Chevrolet Corvette Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-14879Wilwood Brakes 1988-1996 Chevrolet Corvette Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-14879
$3,357.99 ea
NEWARRIVING SOONEstimated Ship Date 07/08/2024 (If Ordered Today)10 Available from WILWOOD ENGINEERING as of 06/23/2024
Model: 3922154
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

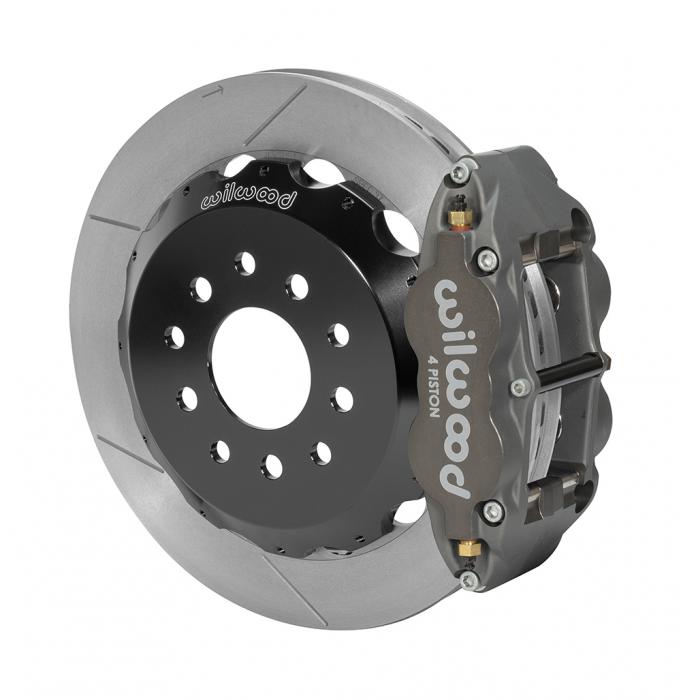

FNSL4R rear race kits provide high capacity braking for dedicated track use on Corvettes and other purpose built vehicles equipped with 1988-1996 C4 Corvette rear suspension. The parking brake is eliminated and the original equipment single piston combination caliper is replaced with a high efficiency, forged aluminum, fixed radial mount narrow four piston Superlite caliper. The forged caliper bodies feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores and high resistance to abrasion and corrosion throughout. Stainless steel pistons with internal damping springs are used with controlled retraction, high temperature seals for long term durability and consistent performance during extreme duty use. The caliper piston volume is fully compatible and matched to the output of the OE master cylinder on production based Corvettes, and easily configured with balance bar manual brake pedals in non-OE based purpose built race vehicles. The calipers are coupled with weight-saving two-piece rotor assemblies using 12.88” diameter Spec37 alloy direction vane GT series rotors mounted to the OE hubs with forged aluminum hats. High-temperature, high friction, endurance race compound brakes pads are specifically selected per application to provide high brake torque with smooth driver control and long wear in sustained high temperature competition.

Fitment Notes

1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
2. Production chassis Corvettes require flexline kit 220-8177 for installation.
3. Custom built vehicles using adapted 1988-1996 Corvette suspension must specify the required line length.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1248.pdf523.56KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Chevrolet Corvette 1988 - 1996 KIT,REAR,C4 VETTE,88-96,12.88,RACE,W/O P-BRAKE,ANO; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, TYPE III ANO
Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
Production chassis Corvettes require flexline kit 220-8177 for installation.
Custom built vehicles using adapted 1988-1996 Corvette suspension must specify the required line length.
C-4 with Standard Brake Option, 12" Rotor Models
with 12" Rotors
C-4 Models
with Heavy Duty Brakes
with 13" Rotors

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Summary
Axle Offset 0.00
Caliper Type 4 - Type III Ano
Min Wheel Diameter Req'd* 17
Mount Type Radial
Rear End Axle OEM
Rotor Diameter 12.88
Kit Components & Specs / Rotors
Bedded No
Design Type GT
Dynamically Balanced Yes
Left Hand - Part No 160-12962
Material Spec-37 Iron
Outside Diameter (in) 12.88
Right Hand - Part No 160-12961
Style GT Slotted
Surface Finish Plain
Type GT 48 Curved Vane
Vane Count 48 CV
Width (in) 1.10
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
Bridge Bolt Kit 230-7710
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2579
Replacement Piston 1 200-8439
Replacement Piston 2 200-8439
Wear Plate - Left Hand 300-6596
Wear Plate - Right Hand 300-6595
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 X 4.50
Bolt Circle 2 5 X 4.75
Finish Color Black E-Coat
Hat - Part No 170-6837
Hat Offset Dimension (in) 0.880
Material Aluminum
Stud Diameter - BC 1 0.560
Stud Diameter - BC 2 0.520
Stud Diameter - BC 3 0.000
Type Big Brake Hat - Short Offset
Parts & Accessories / Hat
Bolt Kit 230-4572

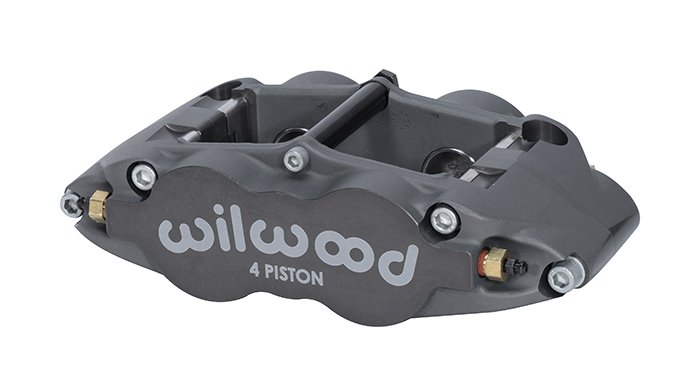

Kit Components & Specs / Calipers
Brake Pad Area (In²) 8.2
Brake Pad Plate 7416
Brake Pad Volume (In³) 3.8
Finish Color Type III Ano
Left Hand - Part No 120-11782
Mount Type Radial
Pad Compound BP-30
Piston 1 Bore (in) 1.12
Piston 2 Bore (in) 1.12
Piston Area (In²) 1.98
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-11782
Type Forged Narrow Superlite 4R
Parts & Accessories / Brake Lines
Front Line Kit 220-8177
