Aeromotive 325 LPH In-Tank Fuel Pump, Compact Body 11565

Aeromotive 325 LPH In-Tank Fuel Pump, Compact Body 11565
Aeromotive 325 LPH In-Tank Fuel Pump, Compact Body 11565Aeromotive 325 LPH In-Tank Fuel Pump, Compact Body 11565Aeromotive 325 LPH In-Tank Fuel Pump, Compact Body 11565Aeromotive 325 LPH In-Tank Fuel Pump, Compact Body 11565
$472.99 ea
NEWARRIVING SOONEstimated Ship Date 08/13/2026 (If Ordered Today)
Model: 5118129
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

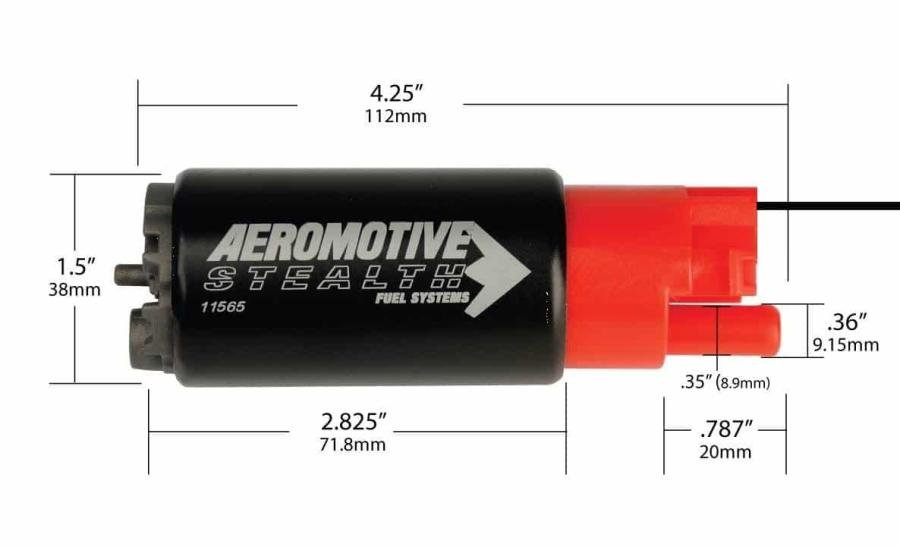

The New Aeromotive 325 Stealth Fuel Pump is similar to the popular 340 Stealth Pumps. The 325 is a compact body design, high-output, in-tank fuel pump that fits many popular late model EFI applications. The Aeromotive 325 is a high performance pump that bolts into many existing hanger assemblies. It is also a significant addition to the Aeromotive Stealth line, as this one part number now fits more than 25 very recent car and truck platforms, many of which are common for performance upgrades. What sets the 325 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other aftermarket pumps, the 325 boasts a significant increase in performance, flowing more than 325 lph at 40 psi. this pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the OE configuration. The 325 is also perfect for use as a replacement fuel pump for applications that require more flow to support forced air power adders such as turbos and superchargers. E85 compatible. Compact 38mm body for OE fitment. Internal check valve. Quiet, durable, and reliable turbine impeller. Designed for in-tank use only. Can be used with carbureted or EFI applications. Can be used in pulse modulated applications.
About Aeromotive

For over 26 years, Aeromotive has been committed to designing and manufacturing the highest quality fuel systems and components for OE applications and the automotive aftermarket. A brand backed by integrity and reliability, a passion for performance and a hands-on, real world approach drove Aeromotive to its position as industry leader. Since our previous acquisition in 2015, PerTronix has been searching for a strong automotive brand in its growth cycle with a strong culture that would align well with PerTronix Performance Brands and 2020 brought with it the acquisition of Aeromotive and Waterman Racing Components. Moving forward, our teams will foster collaboration on new product development, processes and best practices with each brand operating from their existing locations to benefit from the capabilities of their respective manufacturing facilities.

Downloads:

Download Name File Size
115-6502-0.pdf691.48KB

Videos:

Specifications:

Filter Included No
Fuel Delivery Type Carburation & Fuel Injection
Fuel Sending Unit Included No
Fuel Type Gas/E85
Gasket Or Seal Included No
Grade Type Performance
Integrated Controller No
Internal Or External Internal
Maximum Current Draw 15.5
Maximum Flow Rating 325
Maximum Pressure 40
Mounting Bracket Included No
Mounting Hardware Included No
Negative Ground Yes
Outlet Outside Diameter 0.35
Outlet Type Barb
Part Type Electric Fuel Pump
Prop 65 Flag Yes
Pulse Width Modulation Compatible Yes
Pump Design turbine impeller
Regulator Included No
Seal And Lock Ring Included No
Series Stealth 325
Strainer Included Yes
Terminal Gender 280 Metri_Pack
Terminal Quantity 2
Terminal Type Lead Wire
Universal Or Specific Fit Universal
Voltage 12
Warranty Time 12 Months
Wire Quantity 2
Wiring Harness Included Yes
